LCD Module / Mono character LCD module /

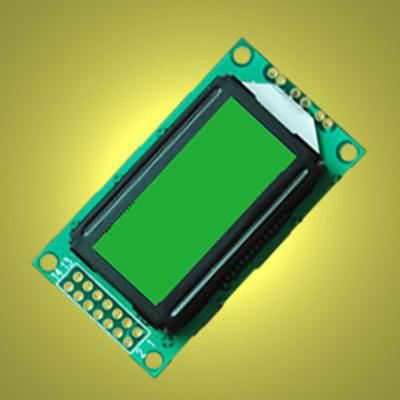

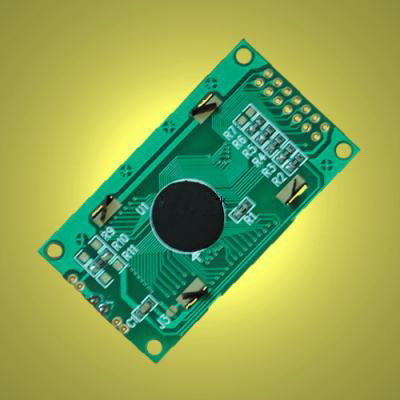

KD0802A-1YG



  8x2 character yellow green LCD module with ST7066

Brief:
Compatible with TS0802A-1
58.4*32.6*13 mm
Driver: ST7066

Detailed:
LCD name: 8x2 character LCD module with ST7066
Display type: STN
Resolution (pixels): 5*8 dots in 8 characters*2 lines
Overall size: 58.4*32.6*13 mm
Viewing area: 35.72*15.08.mm
Active Area: 27.72*11.48 mm
Character size: 2.95*5.54 mm
Dot pitch: 0.6*0.7 mm
Display mode: positive
Background color: Yellowgreen
Backlight type and color: LED backlight/ Yellowgreen
Display format: 8 Characters * 2 Lines
Viewing direction: 6:00
Polarizers: transflective
Controller: ST7066U-OA, ST7065C
Operating temperature range: -20...+70°C
Storage temperature range: -30...+80°C
