LCD Module / Mono character LCD module /

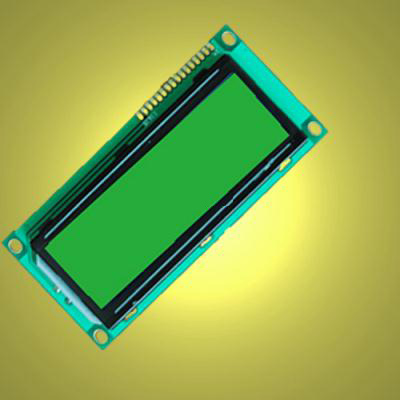

KD1620G-1YG



  16x2 character LCD module with ST7065 and ST7066

Brief:
122*44.0*14 mm
Driver: ST7065, ST7066

Detailed:
LCD name: 16x2 character LCD module with ST7065 and ST7066
Display type: STN
Resolution (pixels): 5*8 dots in 16 characters*2 lines
Overall size: 122*44*14 mm
Viewing area: 99*24.mm
Active Area: 97.5*22.5 mm
Character size:4.84*9.22 mm
Dot pitch: 0.98*1.16 mm
Display mode: positive
Background color: yellowgreen
Backlight type and color: LED backlight/ yellowgreen
Display format: 16 Characters * 2 Lines
Viewing direction: 6:00
Polarizers: transflective
Controller: ST7066U-OA, ST7065C
Operating temperature range: -20...+70°C
Storage temperature range: -30...+80°C
