LCD Module / Mono Graphic LCD module /

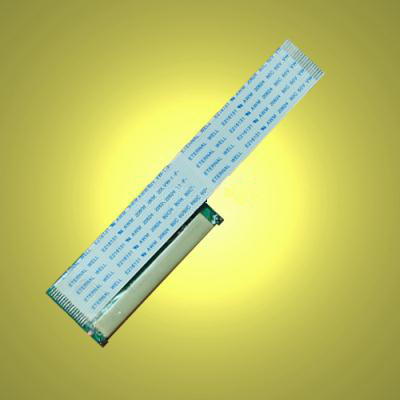

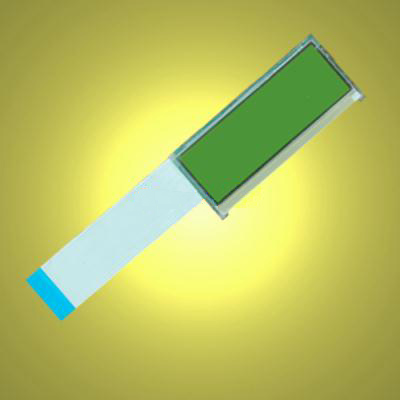

KD12232L

122x32 STN positive, transflective yellow green LCD Brief: Compatible with KD12232L, TX12232L 65.6*29.2*6.0 mm Driver: PT6520, SBN1661G-M18, SBN1661G-M02 Detailed: LCD name: 122x32 STN positive transflective yellow green LCD Display type: STN Resolution (pixels): 122*32 Overall size: 65.6*29.2*6.0 mm Viewing area: 54.8*19.1 mm Active Area: 48.76*15.32 mm Dot size: 0.36*0.41 mm Dot pitch: 0.40*0.45 mm Display mode: positive Background color: yellow green Backlight type and color: LED backlight/yellow green Viewing direction: 6:00 Polarizers: transflective Connector: ZEBRA paper Operating temperature range: -20...+70°C Storage temperature range: -30...+80°C
