LCD Module / Small size TFT LCD module /

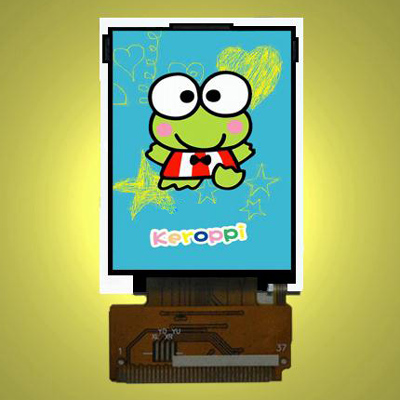

KD020C-1





  176x220, ST7775R,8-bit MCU interface, 2.0inch TFT LCD module

Brief:
38.40*51.40*2.5 mm
Driver: ST7775R

Detailed:
LCD name 2.0 inch 176x220, ST7775R, support 8-bit MCU interface, TFT LCD module
Display type: TFT
Display mode: transmissive
Resolution (pixels): 176*220 QCIF
Overall size: 38.4*51.4*2.5 mm
Viewing area: 35.08*47.1 mm
Active Area: 31.68*39.6 mm
Interface type: 8080 8 bit parallel MCU interface
Interface Connector: Soldering type
Backlight: 3 LED parallel Vled=3.2V, Iled=15x3mA
Viewing direction: 12:00
Driver: Si7775R
Operating temperature range: -20...+70°C
Storage temperature range: -30...+80°C
