LCD Module / Small size TFT LCD module /

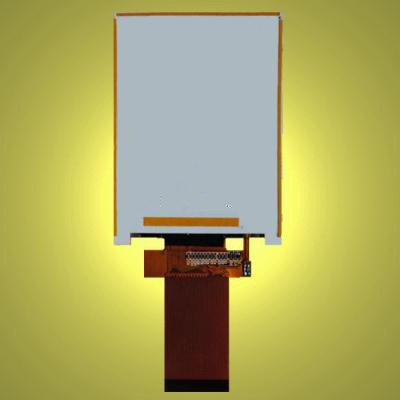

KD032C-2





  240*320, ILI9325C, MCU/ SPI/RGB interface, 3.2 inch glass lcd

Brief:
Compatible with RX032C-2, CFAF240320A-032T
57.04*78.1*3.1 mm
Driver: OTM3225A/ILI9325C

Detailed:
LCD name: 3.2 inch, MCU interface QVGA Portrait TFT LCD with OTM3225A/ILI9325C
Display type: TFT, Negative
Display mode: transmissive
Resolution (pixels): 240*RGB*320 dots
Overall size: 57.04*78.1*3.1 mm
Viewing area: 53.74*75.4 mm
Active Area: 48.60*64.8 mm
Driver: OTM3225A/ILI9325C
Interface type: 45 pin, pin pitch 0.5 mm
   8-bit parallel interface
   9-bit parallel interface
   16-bit parallel interface
   18-bit parallel interface
   3 wire SPI interface
   4 wire SPI interface
RGB interface
Interface Connector: connecting type
Backlight type and color: LED backlight/white,4 LED in serial
Viewing direction: 9:00
Operating temperature range: -20...+70°C
Storage temperature range: -30...+80°C
