LED Module / SMD LED Module /

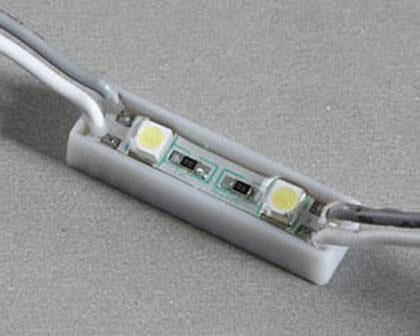

BFT2708-2X3528
3528 SMD LED Waterproof LED Module Series
 |
|
Judged
against the performance of standard neon or fluorescent lamps, RightLEDs
3528 SMD LED Modules are ideal for signage channel letters which
provide significant energy cost reductions(less 40%than neon), easier
jobsite installation(splice connector or twist-on wire connector and 3M
double-faced sticking tape), free maintenance and more consistent
brightness.
Customer segments: Retail, restaurant, hospital, grocery and casino. |
| Part Number: BFT2708-2X3528 |
Features:
* Little Size
3528 SMD LED Modules
* Easy Installation
LED Modules can be easily installed with 3M double-sided sticking tape and connectors.
* Extended Life
LED Modules have a life time of more than 50,000 hours.
* Totally waterproof
With IP67 protection degree, LED Modules can operate
normally in cloudy, rainy, desert, and snowy weather conditions and
pool. The LEDs are totally covered by resin.
* Friendly environment
Pb free. With CE/RoHS/SGS certificate, Waterproof LED Modules are up to 60% more energy efficient than neon.
* Safe Application
Low voltage DC12V, safety and stable. Free maintenance |
| Specification |
|
| Dimension |
L27XW8XH4mm |
| LED No |
2 pcs 3528 SMD LED |
| Voltage |
Input 12VDC |
| View angle |
150 degree |
Current
|
20mA |
20mA |
20mA |
30mA |
30mA |
| Watts |
0.24 |
0.24 |
0.24 |
0.36 |
0.36 |
| Lumen |
12.6 |
1.7 |
6.5 |
2.6 |
4.2 |
| Cover |
Milky ABS |
| Life |
50,000 hrs.
Lumen Maintenance:>95%@1,000hrs |
| Color |
White
3500~800k |
Blue |
Green |
Yellow |
Red |
| Operation Temperature |
-40°C...60°C |
| Certificate |
CE:BTRE0708181359 / RoHS: BTRS0708310889 |
| Warranty |
36 months |
| Weight |
1g/pc. |
| IP |
IP67 The PCB be covered by resin. |
| Part No |
BFT2708-2W3528 |
BFT2708-2B3528 |
BFT2708-2G3528 |
BFT2708-2Y3528 |
BFT2708-2R3528 |
|
|
Example of use:
|
|
