LED Module / SMD LED Module /

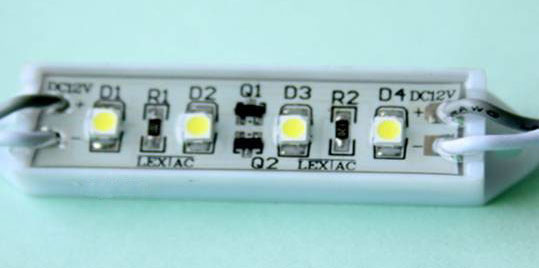

BFT4812-4X3528
3528 SMD LED Waterproof LED Module Series

BFT4812-4X3528, 3528 SMD LED Waterproof LED Module Series, LED Module   Judged against the performance of standard neon or fluorescent lamps, RightLEDs 3528 SMD LED Modules are ideal for signage channel letters which provide significant energy cost reductions(less 40%than neon), easier jobsite installation(splice connector or twist-on wire connector and 3M double-faced sticking tape), free maintenance and more consistent brightness.
Customer segments: Retail, restaurant, hospital, grocery and casino.

Part Number: BFT4812-4X3528

Features:
* Little Size
3528 SMD LED Modules
* Easy Installation
LED Modules can be easily installed with 3M double-sided sticking tape and connectors.
* Extended Life
LED Modules have a life time of more than 50,000 hours.
* Totally waterproof
With IP67 protection degree, LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The LEDs are totally covered by resin.
* Friendly environment
Pb free. With CE/RoHS/SGS certificate, Waterproof LED Modules are up to 60% more energy efficient than neon.
* Safe Application
Low voltage DC12V, safety and stable. Free maintenance

 Specification

Dimension L62.94XW12.12XH7.7mm
LED No 4 pcs 3528 SMD LED
Voltage Input 12VDC
View angle 150 degree
Current
20mA 20mA 20mA 30mA 30mA
Watts 0.42 0.42 0.42 0.72 0.72
Lumen 25.2 3.44 13 5.5 8.4
Cover Milky ABS
Life 50,000 hrs.
Lumen Maintenance:>95%@1,000hrs
Color White
3500~13000k
Blue Green Yellow Red
Operation Temperature -40°C...60°C
Certificate CE:BTRE0708181359 / RoHS: BTRS0708310889
Warranty 36 months
Weight
IP IP67 The PCB be covered by resin.
Part No BFT4812-4W3528 BFT4812-4B3528 BFT4812-4G3528 BFT4812-4Y3528 BFT4812-4R3528

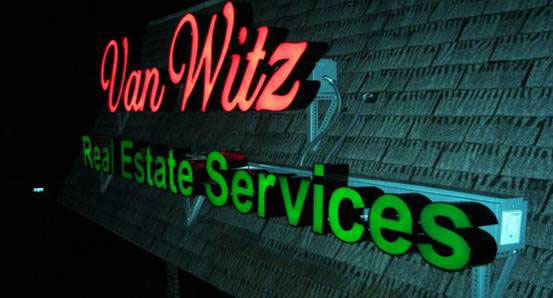

Example of use:

BFT4812-4X3528, 3528 SMD LED Waterproof LED Module Series, LED Module
