LED Module / Through hole LED Waterproof LED Module Series /

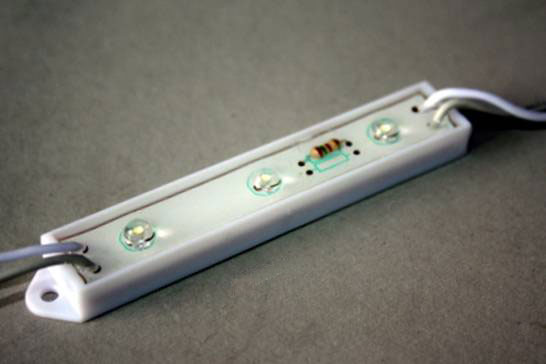

BFC7812-3X
Through hole LED Waterproof LED Module Series

BFC7812-3X, Through hole LED Waterproof LED Module Series   Judged against the performance of standard neon or fluorescent lamps, RightLEDs through hole LED Modules are ideal for signage channel letters which provide significant energy cost reductions(less 40%than neon), easier jobsite installation(splice connector or twist-on wire connector and 3M double-faced sticking tape), free maintenance and more consistent brightness.
Customer segments: Retail, restaurant, hospital, grocery and casino.

Part Number: BFC7812-3X

Features:
* The Lowest Cost
Through hole LED Modules have the best price in all LEDs
* High Brightness
LED Modules consist of 3 through hole LEDs in high intensity and can emit higher brightness at lower cost .No spot. No shadow
* Easy Installation
LED Modules can be easily installed with 3M double-sided sticking tape and connectors.
* Extended Life
LED Modules have a life time of more than 30,000 hours.
* Totally waterproof
With IP67 protection degree, LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The LEDs are totally covered by resin.
* Friendly environment
Pb free. With CE/RoHS/SGS certificate, LEDs Waterproof LED Modules are up to 60% more energy efficient than neon.
* Safe Application
Low voltage DC12V, safety and stable. Free maintenance

 Specification

Dimension L91XW14XH7mm
LED No 3 pcs through hole LED
Voltage Input 12VDC
View angle 120 degree
Current
20mA 20mA 20mA 30mA 30mA
Watts 0.24 0.24 0.24 0.36 0.36
Lumen 12 3.4 11 3.9 5.1
Cover Milky ABS
Life 30,000 hrs.
Lumen Maintenance:>92%@1,000hrs
Color White
3500~13000k
Blue Green Yellow Red
Operation Temperature -40°C... 60°C
Certificate CE:BTRE0708181359 / RoHS: BTRS0708310889
Warranty 12 months
Weight 6g/pc.540g/60pcs/bag.
IP IP67 The PCB be covered by resin.
Part No BFC7812-3W BFC7812-3B BFC7812-3W BFC7812-3Y BFC7812-3R


BFC7812-3X, Through hole LED Waterproof LED Module Series

Example of use:

BFC7812-3X, Through hole LED Waterproof LED Module Series
