LED Module / Through hole LED Waterproof LED Module Series /
BFC7812-5X
Through hole LED Waterproof LED Module Series
 |
|
Judged
against the performance of standard neon or fluorescent lamps, RightLEDs
through hole LED Modules are ideal for signage channel letters which
provide significant energy cost reductions(less 40%than neon), easier
jobsite installation(splice connector or twist-on wire connector and 3M
double-faced sticking tape), free maintenance and more consistent
brightness.
Customer segments: Retail, restaurant, hospital, grocery and casino. |
Features:
* The Lowest Cost
Through hole LED Modules have the best price in all LEDs
* High Brightness
LED Modules consist of 3 through hole LEDs in high
intensity and can emit higher brightness at lower cost .No spot. No
shadow
* Easy Installation
LED Modules can be easily installed with 3M double-sided sticking tape and connectors.
* Extended Life
LED Modules have a life time of more than 30,000 hours.
* Totally waterproof
With IP67 protection degree, LED Modules can operate
normally in cloudy, rainy, desert, and snowy weather conditions and
pool. The LEDs are totally covered by resin.
* Friendly environment
Pb free. With CE/RoHS/SGS certificate, LEDs Waterproof
LED Modules are up to 60% more energy efficient than neon.
* Safe Application
Low voltage DC12V, safety and stable. Free maintenance |
| Specification |
|

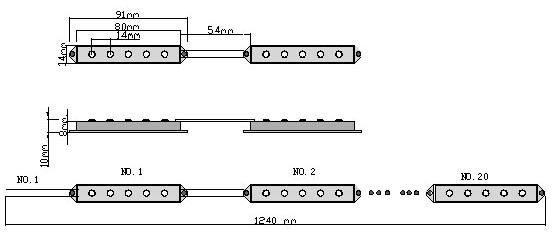

| Dimension |
L91XW14XH7mm |
| LED No |
3 pcs through hole LED |
| Voltage |
Input 12VDC |
| View angle |
120 degree |
Current
|
20mA |
20mA |
20mA |
30mA |
30mA |
| Watts |
0.48 |
0.48 |
0.48 |
0.72 |
0.72 |
| Lumen |
20 |
5.25 |
18.5 |
6.5 |
8.5 |
| Cover |
Milky ABS |
| Life |
30,000~50,000 hrs.
Lumen Maintenance:>92%@1,000hrs |
| Color |
White
3500~13000k |
Blue |
Green |
Yellow |
Red |
| Operation Temperature |
-40°C... 60°C |
| Certificate |
CE:BTRE0708181359 / RoHS: BTRS0708310889 |
| Warranty |
12 months |
| Weight |
10g/pc.600g/60pcs/bag. |
| IP |
IP67 The PCB be covered by resin. |
| Part No |
BFC7812-5W |
BFC7812-5B |
BFC7812-5W |
BFC7812-5Y |
BFC7812-5R |
|
|
Example of use:
|
|
