Power Supplies / D Series /

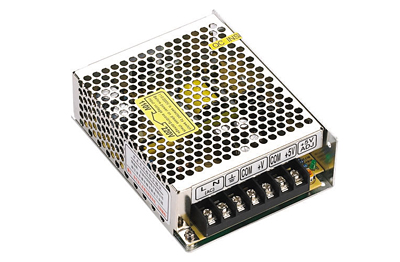

D-30W series
 |
Normal dual switching power supply
Features:
- AC input voltage range selected by switch
- Small volume, low weight, high efficiency
- Protections:short circuit/over load
- LED indicator for power on
- 100% full load burn-in test
- 2 year warranty |
|
Model |
D-30A |
D-30B |
D-30C |
|
output |
DC voltage |
CH1: 5V |
CH2: 12V |
CH1: 5V |
CH2: 24V |
CH1: 12V |
CH2: 24V |
|
Voltage tolerance |
±2% |
+3%~-7% |
±2% |
+4%~-6% |
±2% |
+5%~-7% |
|
Rated current |
4A |
1A |
2.2A |
1A |
1A |
1A |
|
Current range |
0.5~4A |
0.2~1A |
0.4~2.2A |
0.1~1A |
0.3~1A |
0.1~1A |
|
Rated power |
32W |
35W |
36W |
| Ripple&noise |
80mvp-p |
100mvp-p |
80mvp-p |
120mvp-p |
100mvp-p |
120mvp-p |
|
DCvoltage ADJ.range |
CH1: -9%~+10% |
|
input |
Voltage range |
90~132VAC / 180~264VAC (selected by switch), 255~373VDC |
|
frequency |
47~63HZ |
|
AC current |
0.8A/115VAC, 0.45A/230VAC |
|
Efficiency |
73% |
75% |
77% |
|
Inrush current |
Cold start current 18A/115VAC, 36A/230VAC |
|
Leakage current |
< 2mA/240VAC |
| protection |
Overload |
Rated output power 110%~150 start over load protection |
|
protection type: part layer type current limit, auto-recovery after fault condition is removed |
|
environment |
Working temp, humidity |
-10°C~+60, 20%~90%RH |
|
Storage temp, humidity |
-20°C~+85, 10%~95%RH non-condensing |
|
Withstand vibration |
10~500HZ, 2G 10min/1cycle, period for 60 minutes, each axes |
|
safety |
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC |
|
fit standard |
Safety standard |
Fit UL1012 |
|
EMC standard |
EN55022, CLASS A |
|
others |
Dimension |
129*98*38mm (L*W*H) |
|
Weight/packing |
0.4kg/45pcs/19kg/0.034m3/1.2CUFT |
|
note |
1. All parameters NOT specially mentioned are measured at 230VAC input,
rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using
a 12"
twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation. |
|
