Power Supplies / DR Series /

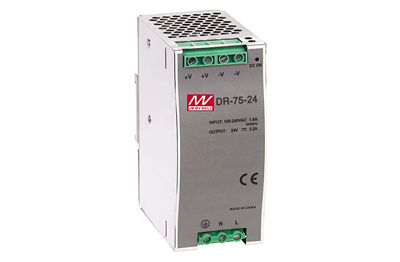

DR-75W series
 |
Features:
- Universal AC input
- Small volume, low weight, high efficiency
- Protections:short circuit/over load/over voltage
- Cooling by free air convectio
- Can be installed on DIN rail: TS-35/7.5or TS-35/15
- LED indicator for power on
- 100% full load burn-in test
- 2 year warranty |
|
Model |
DR-75-12 |
DR-75-24 |
DR-75-48 |
|
output |
DC voltage |
12V |
24V |
48V |
|
Voltage tolerance |
±2% |
±1% |
±1% |
|
Rated current |
6.3A |
3.2A |
1.6A |
|
Current range |
0~6.3A |
0~3.2A |
0~1.6A |
|
Rated power |
76W |
76.8W |
76.8W |
| Ripple&noise |
100mvp-p |
150mvp-p |
200mvp-p |
|
DCvoltage ADJ.range |
-9%~+10% |
±10% |
±10% |
|
input |
Voltage range |
90~264VAC, 127~373VDC |
|
frequency |
47~63HZ |
|
AC current |
1.6A/110VAC, 0.96A/220VAC |
|
Efficiency |
79% |
81% |
84% |
|
Inrush current |
Cold start current 20A/115VAC, 40A/230VAC |
|
Leakage current |
< 1mA/240VAC |
| protection |
Over load |
Rated output power 110%~150% start over load protection |
|
protection type: rated current limit, auto-recovery after fault condition is removed |
|
Over voltage |
15.6~17.8V |
30.6~33.2V |
54.8~56.6V |
|
protection type: cutoff output, recovery after restart power |
|
environment |
Working temp, humidity |
-20°C~+60, 20%~90%RH |
|
Storage temp, humidity |
-40°C~+85, 10%~95%RH non-condensing |
|
Withstand vibration |
10~500HZ, 2G 10min/1cycle, period for 60 minutes, each axes |
|
safety |
Withstand voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC |
|
fit standard |
Safety standard |
Fit UL1012 |
|
EMC standard |
EN55022, CLASS A |
|
others |
Dimension |
55.5*125.2*100mm (L*W*H) |
|
Weight/packing |
0.6kg/20pcs/13kg/0.046m3/1.64CUFT |
|
note |
1. All parameters NOT specially mentioned are measured at 230VAC input,
rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using
a 12"
twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation. |
|
