Power Supplies / Aluminum hull & Rain-proof type /

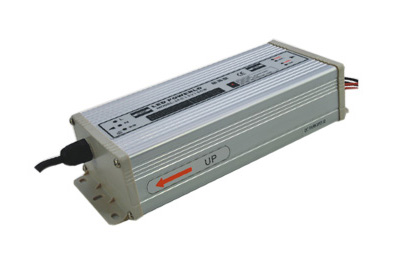

FX150-W1V
 |
World wide AC input voltage
Short circuit overload, over voltage over
temperature protection
Built-in EMI filter for ripple small
100%
full-load burning test
Compact high efficiency
Meets EN60950 safety
standard GB9254 ENC Standard |
| AC input voltage range |
85~132VAC 170~264VAC |
| Input current |
3.2A/115V 1.6A/230V |
| AC inrush current |
Cold-start current20A/115V 40A/230V |
| Leakage current |
<3.5mA/240VAC |
| DC adjustable range |
±10% rated output voltage |
| Over load protection |
105~150% hiccup mode, auto-recovery |
| Setup rise hold up time |
200ms 50ms 20ms |
| Withstand voltage |
I/P-O/P: 1.5KvAC 1 minute
I/P-FG: 1.5KvAC 1 minute
O/P-FG: 0.5KvAC 1 minute |
| Working temperature |
-20°C~+60°C, 20%~90%RH |
| Weight/packing/size |
0.68Kg, 20pcs/13.6Kg, 245*92*52.5(mm) |
| Model |
Output Error Range Efficiency |
FX150-W1V5
FX150-W1V12
FX150-W1V15
FX150-W1V24
FX150-W1V27
FX150-W1V48 |
5V, 0~30A ±1% 100mV 81%
12V, 0~12.5A ±1% 120mV 84%
15V, 0~10A ±1% 120mV 84%
24V, 0~6.5A ±1% 120mV 85%
27V, 0~5.6A ±1%
120mV
86%
48V, 0~3.2A ±1%
200mV
87% |
|
