Power Supplies / HS Series /

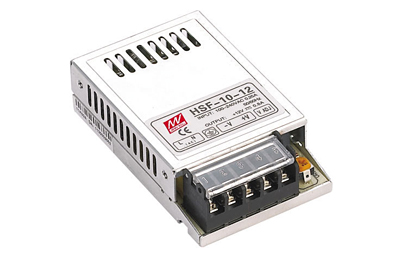

HSF-10W series
 |
Compact single switching power supply
Features:
- Universal AC input
- Small volume, low weight, high efficiency
- Protections:short circuit/over load/over voltage/over temp
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- 2 year warranty |
| Model |
HSF-10-5 |
HSF-10-9 |
HSF-10-12 |
HSF-10-15 |
HSF-10-24 |
|
output |
DC voltage |
5V |
9V |
12V |
15V |
24V |
|
Voltage tolerance |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Rated current |
2A |
1.1A |
1A |
0.7A |
0.5A |
|
Current range |
0~2A |
0~1.1A |
0~1A |
0~0.7A |
0~0.5A |
|
Rated power |
10W |
9.9W |
12W |
10.5W |
12W |
| Ripple&noise |
80mvp-p |
120mvp-p |
120mvp-p |
120mvp-p |
120mvp-p |
|
DCvoltage ADJ.range |
-9%~+10% |
±10% |
±10% |
±10% |
±10% |
|
input |
Voltage range |
90~264VAC, 125~373VDC |
|
Frequency |
47~63HZ |
|
AC current |
0.25A/115VAC, 0.15A/230VAC |
|
Efficiency |
76% |
78% |
79% |
79% |
81% |
|
Inrush current |
Cold start current 15A/115VAC, 30A/230VAC |
|
Leakage current |
< 0.25mA/240VAC |
| protection |
Overload |
Rated output power115%~135% start over load protection |
|
protection type: hiccup mode, auto-recovery after fault condition is removed |
|
Over voltage |
6.8~8.2V |
12.6~14.2V |
15.6~17.8V |
18.6~20.8V |
30.6~33.2V |
|
protection type: hiccup mode, auto-recovery after fault condition is removed |
|
Over temperature |
When temperature of transistor inner node is over 150°C, start over temperature protection |
|
protection type: hiccup mode, auto-recovery after temperature become normal |
|
environment |
Working temp, humidity |
-10°C~+60, 20%~90%RH |
|
Storage temp, humidity |
-20°C~+85, 10%~95%RH non-condensing |
|
Withstand vibration |
10~500HZ, 2G 10min/1cycle, period for 60 minutes, each axes |
|
safety |
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC |
|
fit standard |
Safety standard |
Fit UL1012 |
|
EMC standard |
EN55022, CLASS A |
|
others |
Dimension |
78*48*21mm (L*W*H) |
|
Weight/packing |
0.08kg/200pcs/17kg/0.024 m3/0.87CUFT |
|
note |
1. All parameters NOT specially mentioned are measured at 230VAC input,
rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using
a 12"
twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation. |
|
