Power Supplies / Constant-voltage type /

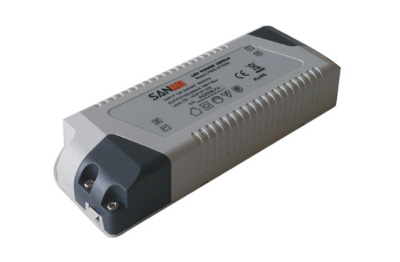

PC30-W1A

World wide AC input voltage
Short circuit overload, over voltage over temperature protection
Built-in EMI filter for ripple small
100% full-load burning test
Compact high efficiency
Meets EN60950 safety standard GB9254 ENC Standard
AC input voltage range 100~240VAC  50~60Hz
AC inrush current Cold-start current20A/230V
Leakage current <0.5mA/240VAC
Over load protection 115~135% hiccup mode, auto-recovery
Over-temp protection >105%°C hiccup mode, auto-recovert
Water level IP 60
Setup rise hold up time 200ms 100ms 30ms
Withstand voltage I/P-O/P: 1.5KvAC 1 minute
I/P-FG: 1.5KvAC 1 minute
O/P-FG: 0.5KvAC 1 minute
Working temperature -20°C~+60°C, 20%~90%RH
Weight/packing/size 0.11Kg, 100pcs/11Kg   132*45*24(mm)
Model Output                Error           Temperatue       Efficiency
PC30-W1A350
PC30-W1A700
350mA, 81~105V  ±5%            < 65°C             > 79%
700mA, 27~36V    ±5%            <  65°C            > 79%
