Power Supplies / Popular type /

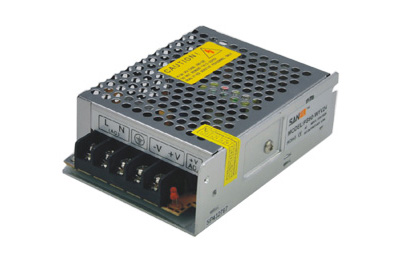

PS60-W1V

World wide AC input voltage
Short circuit overload, over voltage over temperature protection
Built-in EMI filter for ripple small
100% full-load burning test
Compact high efficiency
Meets EN60950 safety standard GB9254 ENC Standard
AC input voltage range 85~264VAC  47~63Hz
Input current 1.8A/110V, 0.9A/230V
AC inrush current Cold-start current 36A/230V
Leakage current <1mA/240VAC
DC adjustable range ±10% rated output voltage
Over load protection 105~150% hiccup mode, auto-recovery
Setup rise hold up time 200ms 100ms 20ms
Withstand voltage I/P-O/P: 1.5KvAC 1 minute
I/P-FG: 1.5KvAC 1 minute
O/P-FG: 0.5KvAC 1 minute
Working temperature -20°C~+60°C, 20%~90%RH
Weight/packing/size 0.25Kg, 60pcs/15Kg, 115*59*33(mm)
Model Output            Error           Range          Efficiency
PS60-W1V5
PS60-W1V12
PS60-W1V15
PS60-W1V24
5V, 0~12A       ±2%           80mV            75%
12V, 0~5A       ±1%           100mV          80%
15V, 0~4A       ±1%           100mV          80%
24V, 0~2.5A    ±1%           150mV          84%
