Power Supplies / T Series /

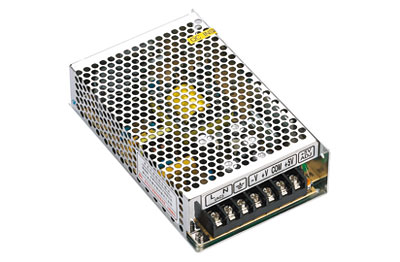

T-60W-B series

Normal triple switching power supply

Features:
- Universal AC input
- Small volume, low weight, high efficiency
- Protections:short circuit/over load/over voltage
- LED indicator for power on
- 100% full load burn-in test
- 2 year warranty

Model T-60B
output DC voltage CH1: +5V CH2: +12V CH3:-5V CH4:-12V
Voltage tolerance ±2% ±6% ±5% ±5%
Rated current 5.5A 2A 0.5A 0.5A
Current range 0.8~5.5A 0.4~2A 0~0.5A 0~0.5A
Rated power 60W
Ripple&noise 80mvp-p 120mvp-p 80mv 120mvp-p
DCvoltage ADJ.range CH1: -9%~+10%
input Voltage range 90~264VAC, 127~373VDC
Frequency 47~63HZ
AC current 1.8A/115VAC, 0.9A/230VAC
Efficiency 71%
Inrush current Cold start current 25A/115VAC, 50A/230VAC
Leakage current < 2mA/240VAC
protection Overload Rated output power 110%~150 start over load protection
protection type: hiccup mode, auto-recovery after fault condition is removed
Over voltage CH1: 115%~135%
protection type: hiccup mode, auto-recovery after fault condition is removed
environment Working temp, humidity -10°C~+60, 20%~90%RH
Storage temp, humidity -20°C~+85, 10%~95%RH non-condensing
Withstand vibration 10~500HZ, 2G 10min/1cycle, period for 60 minutes, each axes
safety Withstand voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolated resistance I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
fit standard Safety standard Fit UL1012
EMC standard EN55022, CLASS A
others Dimension 159*97*38mm (L*W*H)
Weight/packing 0.5kg/45pcs/23.5kg/0.041m3/1.45CUFT
note 1. All parameters NOT specially mentioned are measured at 230VAC input,
rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using
a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
