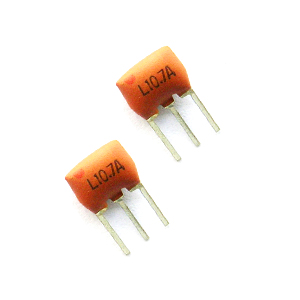

Quartz Crystal Devices / Ceramic Resonators & Filters / Ceramic Filters / LT10.7 SERIES
|
 |
| Model | 3dB Band Width (KHz) |
20dB Band Width (KHz) max |
Insertion Loss (dB) max |
Stop BandAtt (9~12MHz) (dB) min |
| LT10.7MA20 | 330±50 | 680 | 6 | 30 |
| LT10.7MA5 | 280±50 | 650 | 6 | 30 |
| LT10.7MS2 | 230±50 | 600 | 6 | 40 |
| LT10.7MS3 | 180±50 | 520 | 7 | 40 |
| LT10.7MJ | 150±50 | 400 | 10 | 35 |
| LT10.7MH | 110±30 | 350 | 10 | 30 |
|
