Quartz Crystal Devices / Ceramic Resonators & Filters / Ceramic Filters /

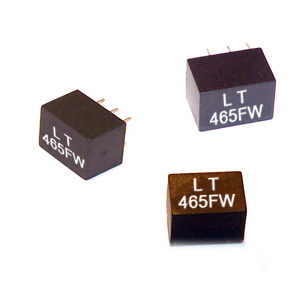

LT450 / 455xW
Ceramic Filter for Communication


Parameters
Model 6dB
Band Width
(KHz) min
Selectivity Stop BandAtt
450/455
±100KHz
(dB) min
Insertion Loss
(dB) max
Input/Output
Impedance
(KΩ)
Att Band
Width
(KHz) max
Att
Specified
(dB) min
LT450/455BW 15 30 50 40 4 1.5
LT450/455CW 12.5 24
LT450/455DW 10 20
LT450/455EW 7.5 15 6
LT450/455FW 6 12.5 2
LT450/455GW 4.5 10
LT450/455HW 3 9
LT450/455IW 2 7.5
LT450/455HTW 3 9 60
LT450/455ITW 2 7.5

Dimensions



Test Circuit
