Products: |

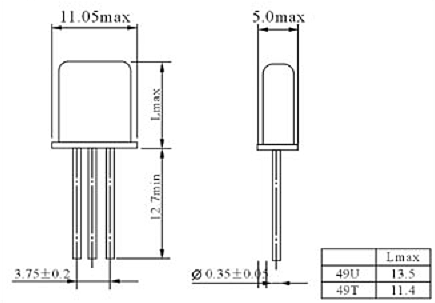

Quartz Crystal Devices / Quartz Crystal Filter / MCF / HC-49U / 49T DIP TYPE
|
 |
Standard package Low frequency available |
| PARAMETERS | SPECIFICATION |
| Frequency Range | 2～50MHz |
| Supply voltage | 1.8V, 2.5V, 2.8V, 3.3V |
| Input Current | See Below |
| Frequency Stability Overall | ±20ppm...±50ppm |
| Operating Temp. Range | -10...+60°C to -40...+85°C |
| Storage Temp. Range | -55...+125°C |
| Output Load | HCMOS/TTL (15pF~30pF/10TTL) |
| Symmetry | 45% ~ 55% typ. (40% ~ 60% max.) at 0.5xVdc |
| Start-up time | 10mS max |
| Enable/ Disable Function | O/E or E/D |
| Model | Nominal Frequency MHz |

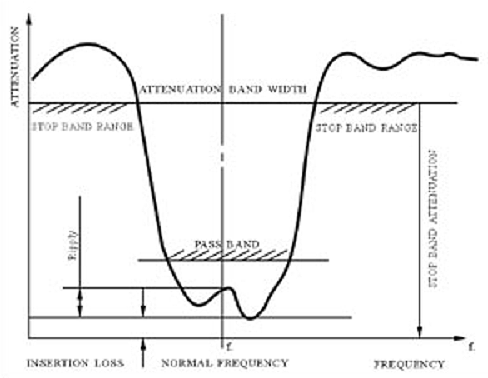

Pass Hand Width KHz/dB |
Slop Band Width KHz/dB |
Ripple dB |
Insertion Loss dB |

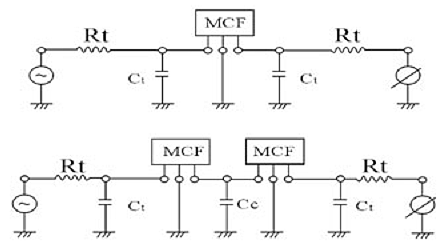

Terminal Impedance Rl/Ct [Ω/pF] |
Operating Temp. Range °C |
Mode of Oscillation |
Pole |
| FT10L07A | 10.695 | ±3.5/3 | ±20/20 | 0.5 | 2.0 | 1800/5 | -20°C-70°C | Fund | 2 |
| FT10L15A | 10.695 | ±7.5/3 | ±25/18 | 0.5 | 2.0 | 3000/2 | -20°C-70°C | Fund | 2 |
| FT10L20A | 10.695 | ±10/3 | <70/18 | 0.5 | 2.0 | 2-3000 | -20°C-70°C | Fund | 2 |
| FT10M07A1 | 10.7 | ±3.75/3 | ±18/20 | 0.5 | 2.0 | 1800/5 | -20°C-70°C | Fund | 2 |
| FT10M07A2 | 10.7 | ±3.75/3 | ±20/20 | 0.5 | 2.0 | 1800/5 | -20°C 70°C | Fund | 2 |
| FT10M12A | 10.7 | ±6.00/3 | ±20/18 | 0.5 | 2.0 | 3000/3 | -20°C 70°C | Fund | 2 |
| FT10M15A | 10.7 | ±7.53/3 | ±25/18 | 0.5 | 2.0 | 3000/2 | -20°C 70°C | Fund | 2 |
| FT10M20A | 10.7 | ±10/3 | <70/18 | 0.5 | 2.0 | 2-3000 | -20°C-70°C | Fund | 2 |
| FT10M30A | 10.7 | ±15/3 | ±50/18 | 0.5 |
2.0 | 5500/-1 | -20°C-70°C | Fund | 2 |
| FT10M07B1 | 10.7 | ±3.75/3 | ±14/40 | 1.0 | 2.5 | 1800/4 | -20°C-70°C | Fund | 4 |
| FT10M07B2 | 10.7 | ±3.75/3 | ± 15/40 | 1.0 | 2.5 | 1500/4 | -20°C-70°C | Fund | 4 |
| FT10M12B | 10.7 | ±6.00/3 | ±20/40 | 1.0 | 2.5 | 2800/1 | -20°C-70°C | Fund | 4 |
| FT10M15B1 | 10.7 | ±7 50/3 | ±25/40 | 1.0 | 2.5 | 3000/1 | -20°C-70°C | Fund | 4 |
| FT10M15B2 | 10.7 | ±7.50/3 | ±25/40 | 1.0 | 2.0 | 3000/2 | -20°C-70°C | Fund | 4 |
| FT10M15B3 | 10.7 | ±7.50/3 | ±27/40 | 1.5 | 2.5 | 2-3000 | -20°C-70°C | Fund | 4 |
| FT10M20B | 10.7 | ±10/3 | ±34/40 | 2.0 | 2.5 | 2-3000 | -20°C-70°C | Fund | 4 |
| FT10M30B | 10.7 | ±15/3 | ±50/40 | 1.0 | 2.5 | 5500/-1 | -20°C-70°C | Fund | 4 |
|
