Quartz Crystal Devices /Quartz Crystal Oscillators / VCXO /

VCXO-DIP8 / VCXO-DIP14
Clock Oscillator

High speed CMOS
High reliability and precision
Set top box
ADSL Modem
PARAMETERS
Electrical Specifications
Frequency Range 1.000MHz to 35.999MHz
Frequency Stability ±25ppm ±50ppm ±100ppm (Std.)
Inclusive of operating temperature range
Operating Temp. Range 0...+70°C
Storage Temp. Range -40...+85°C
Input Voltage +5Vdc±0,5V +3.3Vdc±0,3V
Input Current 30mA max. 20mA max.
0/1 Level 0/1 +0.5V max. / 4.5V min. +0.4V max. / 3.0V min.
Pull Ability ±100ppm min. (Typ.)
(At 2.5Volt 2V)
±100ppm min. (Typ.)
(At 1.65Volt 1.35V)
Linearity ±10% max. (Typ.)
Symmetry 60%/40% or 40%/60% (Typ.)
Rise & Fall time 10nS max.
Start up time 10mS max.
Fan out 15pf / 10TTL
Aging (at 25) ±5ppm / Year max.

Environmental & Mechnical Specifications
Shock FIL-STD-883C, Method 2002, Condition B
Vibration FIL-STD-883C, Method 2007, Condition A
Solderability FIL-STD-883C, Method 2003
Scal Integrity FIL-STD-883C, Method 1014, Condition C & A2
Marking FIL-STD-883C, Method 215

Ordering Information
F VO 10 A A H 3
  1 2 3 4 5 6

1 VO: VCXO
2 Model No.
3 Frequency Stability:
A: 25ppm
B: 50ppm
C: 100ppm
D: Customize
4 Temperature Range:
A: 0...+70°C
B: -20...+70°C
C: -40...+85°C
D: Customize

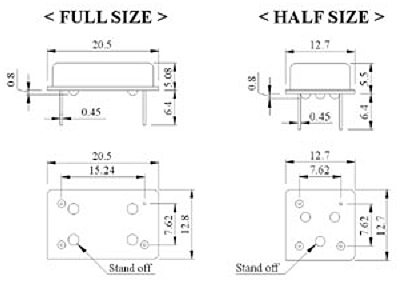

5 Package Type:
H: Half size
F: Full size
6 Input Voltage:
3: 3.3 Volt
5: 5.0 Volt



TEST CIRCUIT

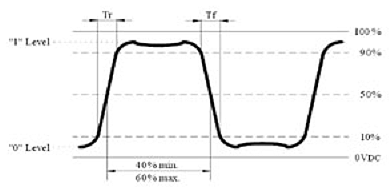

WAVE FORM
