Quartz Crystal Devices / Quartz Crystal Resonators / DIP MHz /

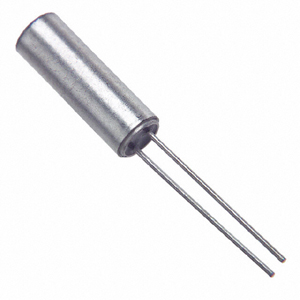

AT26

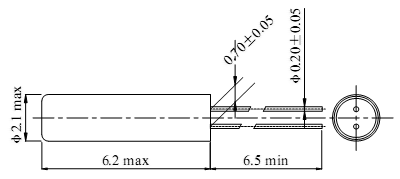

DIP Cylindrical Crystal MHz Ø2x6 mm
 |
2 x 6 mm cylinder type
Small size
±20 ppm Standard
With Insulation Sleeve Available |
| PARAMETERS |
SPECIFICATION |
| Frequency Range |
6.000～50.000MHz |
| Loading Capacitance |
20pF Std. 7pF~33pF available |
| Drive Level |
10μW (300μW Max) |
| Frequency Tolerance |
±10ppm...±20ppm (at 25°C) |
| Equivalent Resistance |
See Below |
| Frequency Stability |
±10ppm...±30ppm |
| Operating Temp. Range |
0...+50°C to -40...+85°C |
| Storage Temp. Range |
-40...+85°C |
| Aging (25°C, First Year) |
±5ppm max |
FREQUENCY STABILITY VS. TEMPERATURE
Operation
Temperature
Range |
Frequency Stability |
| ±10ppm |
±20ppm |
±30ppm |
±50ppm |
| 0...+50°C |
○ |
● |
○ |
○ |
| -10...+60°C |
○ |
● |
○ |
○ |
| -20...+70°C |
○ |
○ |
● |
○ |
| -40...+85°C |
|
○ |
○ |
● |
● standart; ○ available
ESR (SERIES RESISTANCE RS)
| Frequency |
Vibration Mode |
ESR |
| 6.000-7.999MHz |
AT CUT/FUND. |
150Ω (MAX) |
| 8.000-9.999MHz |
AT CUT/FUND. |
100Ω (MAX) |
| 10.000-11.999MHz |
AT CUT/FUND. |
80Ω (MAX) |
| 12.000-15.999MHz |
AT CUT/FUND. |
60Ω (MAX) |
| 16.000-19.999MHz |
AT CUT/FUND. |
50Ω (MAX) |
| 20.000-33.000MHz |
AT CUT/FUND. |
40Ω (MAX) |
| 30.000-50.000MHz |
AT 3rd /OT |
100Ω (MAX) |

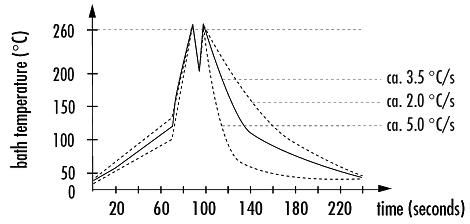

REFLOW SOLDERING PROFILE
|
