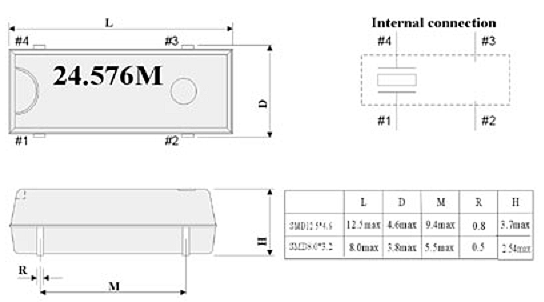

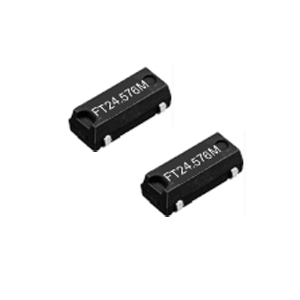

Quartz Crystal Devices / Quartz Crystal Resonators / SMD MHz /
SMD12.5x4.6
 |
Type 4 PAD
Plastic molded SMD type
Reflow soldering temperature: 260°C max |
| PARAMETERS |
SPECIFICATION |
| Frequency Range |
3.579-27MHz |
| Storage Temp. Range |
-55...+125°C |
| Operating Temp. Range |
-40...+85°C |
| Drive Level |
1.0μW Max |
| Frequency Tolerance |
±15ppm...±50ppm |
| Loading Capacitance |
12.5pF Std. 6pF to ∞ |
| Series Resistance |
80Ω-200Ω |
| Motional Capacitance |
16pF Typ. |
| Shunt Capacitance |
5.0pF Max |
| Insulation Resistance |
500MΩ min |
Series Resistance
| Frequency (MHz) |
Series Resistance |
| 3.5 ≤ f < 4 |
200Ω |
| 4 ≤ f < 6 |
150Ω |
| 6 ≤ f < 10 |
100Ω |
| 10 ≤ f < 32 |
50Ω |
| 30 ≤ f < 36 |
100Ω |
| 36 ≤ f < 70 |
80Ω |
|
