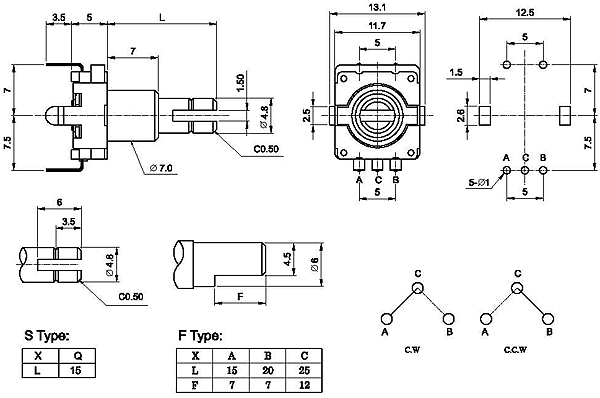

R11R5E-QD1
Encoders
 |
| R11 |
R
P |
1 |
E- |
2 |
D1-0 |
3 |
4 |
5 |
| 1 |
Structure difference |
| 2 |
Shaft type & length |
| 3, 4, 5 |
Serial No. |
|
Characteristics
| Mechanical: |
|
| Total rotational angle |
85°±5° |
| Push pull strength |
8 kgf |
| Rotation stopper strength |
4 kgf.cm |
| Rotational torque |
80-200 gf.cm |
| |
|
| Electrical: |
|
| Insulation resistance |
more than 100 MΩ
at DC 300 V |
| Rated power |
5 V DC, 10 mA |
| Withstand voltage |
more than 300 V AC (1 minute) |
| |
|
| Durability: |
|
| Rotational life |
15000 cycles |
|
 |
|
