Potentiometers / Encoders /

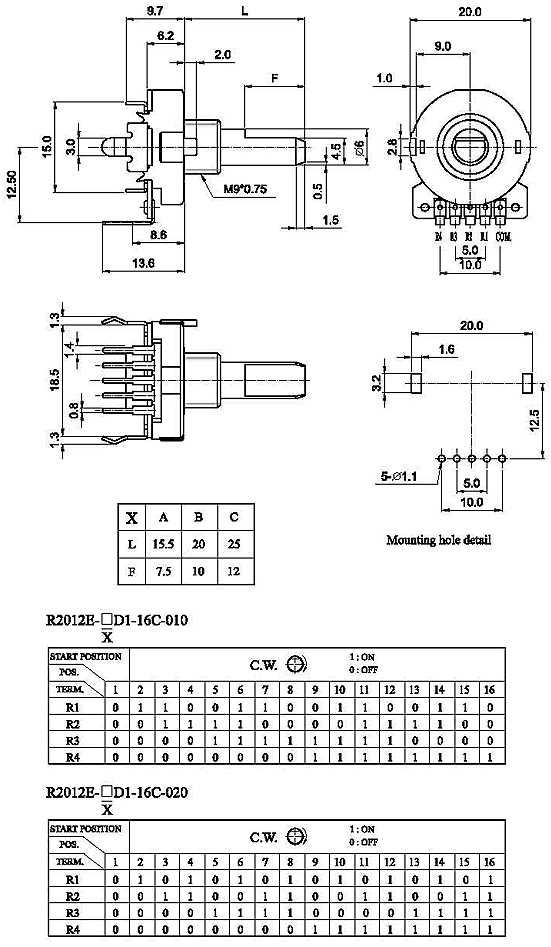

R2012E-xD1-16c
Encoders
 |
| R2012E |
1 |
D1- |
2 |
3 |
4 |
5 |
6 |
- |
7 |
8 |
9 |
| 1 |
Shaft type & length |
| 2, 3 |
Number of click |
| 4, 5, 6 |
Circuit explanation |
| 7, 8, 9 |
Serial No. |
|
Characteristics
| Mechanical: |
|
| Total rotational angle |
360° |
| Click position |
16 detend |
| Click torque |
120-300 gf.cm |
| Push pull strength |
push 10 kgf / pull 10 kgf |
| |
|
| Electrical: |
|
| Insulation resistance |
more than 100 MΩ
at DC 100 V |
| Rated power and current |
10 V DC, 10 mA |
| Contact resistance |
less than 500 mΩ |
| |
|
| Durability: |
|
| Rotational life |
15000 cycles |
|
 |
|
