Potentiometers / Rotary Potentiometers / 12 mm size /

R1212G-_D_-
12 mm size Rotary Potentiometers

R1212G-_D_-, Rotary Potentiometers 12 mm

Characteristics

Mechanical:
Total rotational angle 300°±10°
Rotational torque 20-150 gf.cm
Rotation stopper strength 4 kgf.cm
Push pull strength 4 kgf max.
Click position Center click

Electrical:
Total resistance 5 KΩ - 2 MΩ
Total resistance tolerance ±20%
(more than 1 MΩ ±30%)
Rated power curve B: 0.04 W
other than B: 0.02 W
Max. operating voltage  curve B: 100 V AC
other than B: 50 V AC
Resistance taper A, B, C
Residual resistance R >= 250 KΩ 0,1 % max. of total resistance
250 KΩ > R > 10 KΩ = 20 Ω max.
10 KΩ >= R = 10 Ω max.
Insulation resistance more than 50 MΩ at DC 250 V
Gang error -40 - 0 dB <= 3 dB

Durability:
Rotational life 15000 cycles

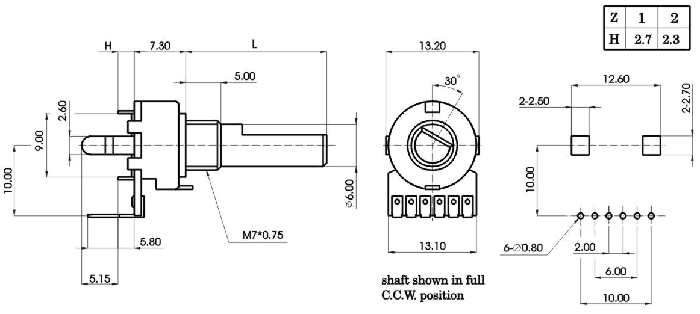

R1212G-_D_-, Rotary Potentiometers 12 mm



Type of shaft

Insulated shaft

Horizontal

Vertical

F-type
X L K I J A H B C
L 5 7 10 10 15 15 20 25
F 5 7 7 8 7 12 12 12
T-Type
X V W Y Z
L 5 10 15 20
T 5 10 15 15
S-type
X N O R
L 10 15 20
S 7 10 12

Metal shaft

Horizontal

Vertical

F-type
X F A B C
L 10 15 20 25
F 4 7 12 12
KQ-type
X 0 2 3 4
L 10 15 20 25
T 3.5 7.5 10 10
M 0.5 1 2 2
