Potentiometers / Rotary Potentiometers /

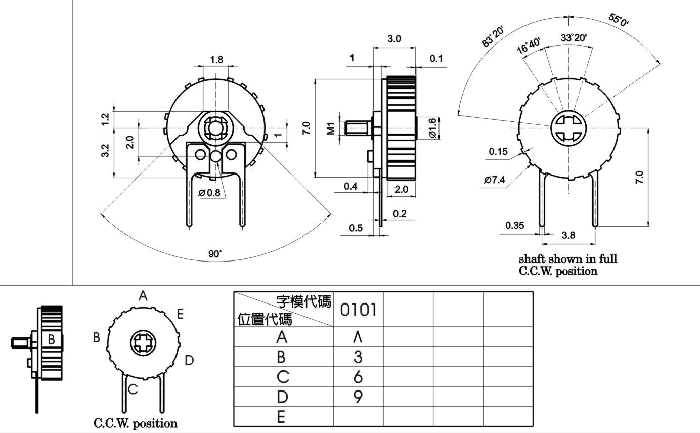

R0710N-0A1-
7 mm size Rotary Potentiometers

Rotary Potentiometers size 7 mm

Characteristics

Mechanical:
Total rotational angle 250°±5°
Rotational torque max. 10 gf.cm, typical 3-7 gf.cm
Rotational stopper strength 300 kgf.cm
Fixation nut mounting torque max. 200 gf.cm

Electrical:
Total resistance 500 Ω - 1 MΩ
Total resistance tolerance ±20% (more than 1 MΩ ±30%)
Resistance taper A, B, C
Residual resistance R >= 250 KΩ 0,1 % max. of total resistance
250 KΩ > R > 10 KΩ = 20 Ω max.
10 KΩ >= R = 10 Ω max.
Slide noise less than 100mV

Durability:
Rotational life 25000 cycles
Rotary Potentiometers size 7 mm
