Potentiometers / Rotary Potentiometers / 8 mm size /
RD840G-_A1-
8 mm size Rotary Potentiometers
Characteristics
| Mechanical: |
|
| Total rotational angle |
300°±10° |
| Rotational torque |
10 gf.cm - 80 gf.cm |
| Rotational stopper strength |
3 kgf.cm |
| Click position |
Center click |
| Click torgue |
20-150 gf.cm |
| Push pull strength |
push 5 kgf / pull 3 kgf |
| |
|
| Electrical: |
|
| Total resistance |
10 KΩ - 500 KΩ |
| Total resistance tolerance |
±20% |
| Rated power |
curve B: 0.05 W
other curve B: 0,025 W |
| Max. operating voltage |
curve B: 50 V AC
other curve B: 25 V AC |
| Resistance taper |
A, B, C |
| Residual resistance |
R >= 250 KΩ 0,1 % max. of total resistance
250 KΩ > R > 10 KΩ = 20 Ω max.
10 KΩ >= R = 10 Ω max. |
| Slide noise |
less than 100mV |
| Insulation resistance |
more than 100 MΩ at DC 250 V |
| Gang error |
-40 ~ 0 dB <= 3dB |
| |
|
| Durability: |
|
| Rotational life |
10000 cycles |
|
 |
|

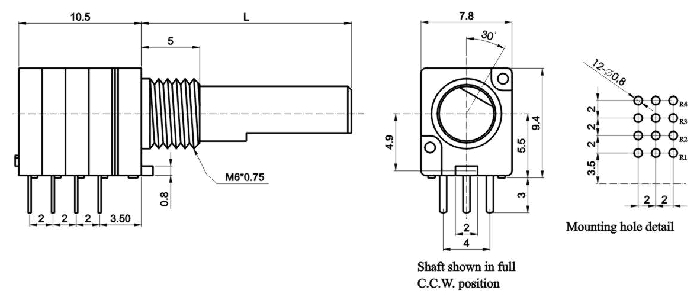

Type of shaft
| F-type |
 |
| X |
A |
B |
C |
H |
J |
F |
G |
| L |
15 |
20 |
25 |
10 |
15 |
12 |
18 |
| K |
7 |
12 |
12 |
3.5 |
9 |
5 |
9 |
|
| S-type |
 |
|
|
|
|
