Potentiometers / Rotary Potentiometers / 9 mm size /

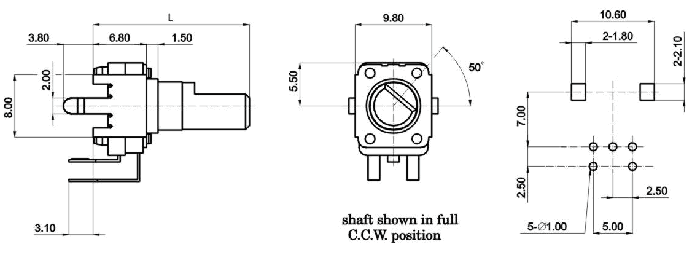

R0901G-_D1-
9 mm size Rotary Potentiometers

Characteristics   R09__N R09__G Mechanical:     Total rotational angle 280°±5° Rotational torque 10 gf.cm - 80 gf.cm Rotational stopper strength 3 kgf.cm Push pull strength 5 kgf Shaft lever wobble 0.8*L/20mmp-p max.       Electrical:     Total resistance 5 KΩ - 500 KΩ 1 KΩ - 1 MΩ Total resistance tolerance ±20% (more than 1MΩ±30%) Rated power 0,05 W 0,03 W Max. operating voltage  50 V AC / 20 V DC 50 V AC (for AC only) Resistance taper A, B, C Residual resistance R >= 250 KΩ 0,1 % max. of total resistance 250 KΩ > R > 10 KΩ = 20 Ω max. 10 KΩ >= R = 10 Ω max. Slide noise less than 100 mV Insulation resistance more than 100 MΩ at DC 250 V Gang error - -40 ~ 0 dB <= 3dB       Durability:     Rotational life 10000 cycles

Type of shaft Horizontal Vertical K-Type X Q R S T U L 15 20 25 30 35 K 6 7 7 7 7 T-Type X H I J L 15 20 25 T - 6 7 F-type X A B C D L 15 20 25 30 F 6 7 12 12 Circuit explanation Vertical Resistance taper A, B, C Horizontal Resistance taper A, B, C
