Potentiometers / Slide Potentiometers / 16 mm size /
S6082G-xy3-
16 mm size Slide Potentiometers
Characteristics
| Mechanical: |
|
Operating force |
for Sxx81: 20-260 gf.cm
for Sxx91: 10-150 gf.cm |
| Stopper strength |
10 kgf / 60 sec |
| Lever wobble |
2(2*L)/ 25 mm max. |
| Bending moment |
250 gf.cm |
| Push pull strength |
5 kgf max. at 10 sec |
| Lever deviation |
0.5 max. (one side) |
| |
|
| Electrical: |
|
| Total resistance |
1 KΩ - 1 MΩ |
| Total resistance tolerance |
±20%
more than 1 MΩ ± 30% |
| Rated power |
curve B: 0.1 W
other curve B: 0.05 W |
| Max. operating voltage |
curve B: 100 V
other then B: 50 V |
| Insulation resistance |
more than 100 MΩ at DC 250 V |
| Resistance taper |
A, B, C |
| Slide noise |
less than 100 mV |
| Residual resistance |
R >= 250 KΩ 0,1 % max. of total resistance
250 KΩ > R > 10 KΩ = 20 Ω max.
10 KΩ >= R = 10 Ω max. |
| |
|
| Durability: |
|
| Sliding life |
15000 cycles |
|
 |
|
Terminal Style
| Y |
Dimensions, mm |
H |
| A |
 |
|
| B |
 |
|

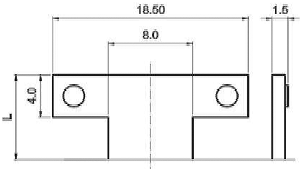

Lever type (metal)
| Type |
Dimensions, mm |
H |
| CH |
 |
|
| D |
 |
|
| H |
 |
|
| B/B1 |
 |
| X |
L |
M |
N |
O |
J |
| L |
8.0 |
10.0 |
12.0 |
20.0 |
15.0 |
| A |
1.5 |
1.5 |
1.5 |
1.5 |
0 |
|
|
|
