Switches / Car Switches /

(R13) Rocker Switch

Model No. Function Rating Cut-Out Terminal
R13-32
R13-89
R13-32A: 2P SPST ON-OFF
R13-32B: 3P SPST ON-OFF (Illuminated)
R13-32C: 3P SPDT ON-ON
10A 12V DC   .250" SQ
R13-33P

R13-33PA.PAP: 2P SPST ON-OFF
R13-33PB.PB2.PB4.PB6: 3P SPST ON-OFF (LED)
R13-33PBF.PB2F.PB4F.PB6F: 3P SPST (ON)-OFF (LED)
R13-33PC.PCP: 3P SPDT ON-ON
R13-33PD.PDP: 3P SPDT ON-OFF-ON
R13-33PE.PEP: 2P SPST ON-(OFF)
R13-33PF.PFP: 2P SPST (ON)-OFF
R13-33PG.PGP: 3P SPDT ON-(ON)
R13-33PH.PHP: 3P SPDT ON-OFF-(ON)
R13-33PI.PIP: 3P SPDT (ON)-OFF-(ON)

20A 14V DC
10A 28V DC

  .187" SQ
PC
SO
R13-66

R13-66A.A5.A8: 2P SPST ON-OFF
R13-66B.B2.B6: 3P SPST ON-OFF (LED or LAMP)
R13-B4.B8: 3P SPST ON-OFF (LED)
R13-B8F:
3P SPST (ON)-OFF (LED)
R13-66C.C8: 3P SPDT ON-ON
R13-66D: 3P SPDT ON-OFF-ON
R13-66E: 2P SPST ON-(OFF)
R13-66F.F8: 2P SPST (ON)-OFF
R13-66G: 3P SPDT ON-(ON)
R13-66H: 3P SPDT ON-OFF-(ON)
R13-66I: 3P SPDT (ON)-OFF-(ON)
R13-66IP:
4P SPST ON-OFF (LED)
R13-66L: 4P SPST ON-OFF (LED)

20A 12V DC

  .187" SQ
SO
R13-69 R13-69A: 4P DPST ON-OFF
R13-69B: 4P DPST ON-OFF (Illuminated)
R13-69C: 6P DPDT ON-ON
20A 12V DC   .250" SQ
SO
R13-70
R13-91

R13-70A: 2P SPST ON-OFF
R13-70A8: 2P SPST ON-OFF
R13-70B: 3P SPST ON-OFF (Illuminated)
R13-70B8: 3P SPST ON-OFF (Illuminated)
R13-70BF: 3P SPST (ON)-OFF (Illuminated)
R13-70B8F: 3P SPST (ON)-OFF (Illuminated)
R13-70C: 3P SPDT ON-ON
R13-70C8: 3P SPDT ON-ON
R13-70D: 3P SPDT ON-OFF-ON
R13-70D8: 3P SPDT ON-OFF-ON
R13-70F: 2P SPST (ON)-OFF
R13-70F8: 2P SPST (ON)-OFF
R13-70H: 3P SPDT ON-OFF-(ON)
R13-70I: 3P SPDT (ON)-OFF-(ON)

20A 12V DC   .250" SQ
SO
R13-73

R13-73A: 4P DPST ON-OFF
R13-73A2: 4P DPST ON-OFF
R13-73B: 3P SPST ON-OFF (Illuminated)
R13-73C: 4P SPST ON-OFF (Illuminated)
R13-73D: 2P SPST ON-OFF

10A 12V DC   .187" SQ
R13-99 R13-99B: 4P SPST ON-OFF (Illuminated)
R13-99C: 5P SPDT ON-ON (Illuminated)
R13-99D: 5P SPDT ON-OFF-ON (Illuminated)
16A 12V DC   .250" SQ
SO
SC M3
R13-112

R13-112A: 2P SPST ON-OFF
R13-112A2: 2P SPST ON-OFF
R13-112A5: 2P SPST ON-OFF (Glass Finish)
R13-112A8.AP: 2P SPST ON-OFF
R13-112B,B2.B8.BP: 3P SPST ON-OFF (Illuminated)
R13-112B9.B10: 3P SPST ON-OFF (LED)
R13-112BF.B2F.B8F: 3P SPST (ON)-OFF (Illuminated)
R13-112B9F: 3P SPST (ON)-OFF (LED)
R13-112C.C8.CP: 3P SPDT ON-ON
R13-112CL: 4P SPDT ON-ON (LED)
R13-112D.D8.DP: 3P SPDT ON-OFF-ON
R13-112DL: 4P SPDT ON-OFF-ON (LED)
R13-112E: 2P SPST ON-(OFF)
R13-112F.F8: 2P SPST (ON)-OFF
R13-112G: 3P SPDT ON-(ON)
R13-112H: 3P SPDT ON-OFF-(ON)
R13-112I: 3P SPDT (ON)-OFF-(ON)
R13-112L.LP: 4P SPST ON-OFF (LED)
R13-112LF: 4P SPST (ON)-OFF (LED)

20A 12V DC
6A 14VT

Ø20.2 .187" SQ

R13-112_H

R13-112AH: 2P SPST ON-OFF
R13-112BH: 3P SPST ON-OFF (Illuminated)
R13-112CH: 3P SPDT ON-ON
R13-112DH: 3P SPDT ON-OFF-ON
20A 12V DC Ø20.2 .187" SQ
R13-129 R13-129A: 2P SPST ON-OFF
R13-129B: 6P DPDT ON-ON
R13-129C: 3P SPDT ON-ON
R13-129D: 3P SPDT ON-OFF-ON
R13-129E: 6P DPDT ON-OFF-ON
R13-129F: 4P DPST ON-OFF
R13-129G: 3P SPDT (ON)-OFF-(ON)
R13-129H: 3P SPDT ON-OFF-(ON)
R13-129K: 6P DPDT (ON)-OFF-(ON)
R13-129M: 6P DPDT ON-OFF-(ON)
20A 12V DC
10A 24V DC
  .250" SQ
SO
SC M3
R13-133 R13-133A: 2P SPST ON-OFF
R13-133B: 3P SPST ON-OFF (Illuminated)
R13-133C: 3P SPDT ON-ON
R13-133L: 3P SPST ON-OFF (LED)
30A 12V DC Ø12.2 .250" SQ
R13-135 R13-135A.A2.AP: 2P SPST ON-OFF
R13-135B.B2.BP: 3P SPST ON-OFF (Illuminated)
R13-135B9: 3P SPST ON-OFF (LED)
R13-135C.CP: 3P SPDT ON-ON
R13-135D: 4P SPDT ON-OFF-ON
R13-135DP: 3P SPDT ON-OFF-ON
R13-135E: 2P SPST ON-(OFF)
R13-135F: 2P SPST (ON)-OFF
R13-135G: 3P SPDT ON-(ON)
R13-135H: 3P SPDT ON-OFF-(ON)
R13-135I: 3P SPDT (ON)-OFF-(ON)
R13-135L.LP: 4P SPST ON-OFF (LED)
R13-135LF: 4P SPST (ON)-OFF (LED)
25A 12V DC Ø20.2 .187" SQ
R13-203 R13-203A.A84: 2P SPST ON-OFF
R13-203AL1.AL2.AL3: 3P SPST ON-OFF (LED)
R13-203B.BP.B84: 3P SPST ON-OFF (Illuminated)
R13-203C: 3P SPDT ON-ON
R13-203CL1.CL2.CL3: 4P SPDT ON-ON (LED)
R13-203C84: 3P SPDT ON-ON
R13-203L.LP: 3P SPST ON-OFF (LED)
25A 12V DC
15A 24V DC
Ø24 .250" SQ
R13-205

R13-205A.A2.A3: 2P SPST ON-OFF
R13-205B.B2: 3P SPST ON-OFF (Illuminated)
R13-205BF.B2F: 3P SPST( ON)-OFF (Illuminated)
R13-205C3: 3P SPDT ON-ON
R13-205D3: 3P SPDT ON-OFF-ON
R13-205F3: 2P SPST (ON)-OFF
R13-205I3: 3P SPDT (ON)-OFF-(ON)
R13-205L: 4P SPST ON-OFF (LED)
R13-205LF: 4P SPST (ON)-OFF (LED)

16A 12V DC
10A 28V DC
6A 14VT

  .250" SQ
SO
R13-207 R13-207A: 2P SPST ON-OFF
R13-207B,B2: 3P SPST ON-OFF (Illuminated)
R13-207C: 3P SPDT ON-ON
R13-207L: 3P SPST ON-OFF (LED)

20A 12V DC
10A 24V DC
6A 14VT

Ø12.2 .250" SQ
R13-211 R13-211A: 2P SPST ON-OFF
R13-211C: 3P SPDT ON-ON
R13-211D: 3P SPDT ON-OFF-ON
R13-211F: 2P SPST (ON)-OFF
R13-211H: 3P SPDT ON-OFF-(ON)
R13-211I: 3P SPDT (ON)-OFF-(ON)
20A 12V DC
10A 24V DC
6A 14VT
  .187" SQ
R13-220B R13-220BA: 3P SPST ON-OFF (Illuminated)
R13-220BC: 4P SPDT ON-ON (Illuminated)
R13-220BD: 4P SPDT ON-OFF-ON (Illuminated)
20A 12V DC
10A 24V DC


.250" SQ
SO
SC M4

R13-227 R13-227A: 2P SPST ON-OFF
R13-227B: 6P DPDT ON-ON
R13-227C: 3P SPDT ON-ON
R13-227D: 3P SPDT ON-OFF-ON
R13-227E: 6P DPDT ON-OFF-ON
R13-227F: 4P DPST ON-OFF
20A 12V DC 44.2*22.2
R13-232 R13-232A: 2P SPST ON-OFF
R13-232B: 6P DPDT ON-ON
R13-232C: 3P SPDT ON-ON
R13-232D: 3P SPDT ON-OFF-ON
R13-232E: 6P DPDT ON-OFF-ON
R13-232F: 4P DPST ON-OFF
R13-232G: 3P SPDT (ON)-OFF-(ON)
R13-232H: 3P SPDT ON-OFF-(ON)
R13-232I: 3P SPDT ON-(ON)
R13-232K: 6P DPDT (ON)-OFF-(ON)
R13-232M: 6P DPDT ON-OFF-(ON)
R13-232N: 2P SPST (ON)-OF
R13-232P: 6P DPDT ON-(ON)
R13-232Q: 4P DPST ON-(OFF)
R13-232R: 2P SPST ON-(OFF)
R13-232S: 4P DPST(ON)-OFF
21A 14V DC
R13-238

R13-238A.A8: 2P SPST ON-OFF
R13-238B: 3P SPST ON-OFF (Illuminated)
R13-238B2.B8: 3P SPST ON-OFF (LED)
R13-238BF: 3P SPST( ON)-OFF (Illuminated)
R13-238B2F.B8F: 3P SPST (ON)-OFF (LED)
R13-238C.C8: 3P SPDT ON-ON
R13-238D.D8: 3P SPDT ON-OFF-ON
R13-238F.F8: 2P SPST (ON)-OFF
R13-238I.I8: 3P SPDT (ON)-OFF-(ON)

16A 12V DC
10A 28V DC
6A 14VT
  .250" SQ
SO
R13-242 R13-242A: 2P SPST ON-OFF
R13-242B: 3P SPST ON-OFF (Illuminated)
R13-242C: 3P SPDT ON-ON
R13-242D: 3P SPDT ON-OFF-ON
R13-242L: 3P SPST ON-OFF (LED)

25A 12V DC   .250" SQ
R13-244 R13-244A.A8: 4P DPST ON-OFF
R13-244B.B8: 4P DPST ON-OFF (Illuminated)
R13-244CB.CB8: 6P DPDT ON-ON (Illuminated)
R13-244DB.DB8: 6P DPDT ON-OFF-ON (Illuminated)
R13-244C.C8: 6P DPDT ON-ON
R13-244D.D8: 6P DPDT ON-OFF-ON
R13-244G: 6P DPDT ON-(ON)
R13-244H: 6P DPDT ON-OFF-(ON)
R13-244I: 6P DPDT (ON)-OFF-(ON)
20A 12V DC
10A 28V DC
Ø20.2 .187" SQ
R13-245 R13-245A: 4P DPST ON-OFF
R13-245B: 4P DPST ON-OFF (Illuminated)
R13-245C: 6P DPDT ON-ON
R13-245D: 6P DPDT ON-OFF-ON
20A 12V DC Ø26.7 .187" SQ
R13-247 R13-247A: 2P SPST ON-OFF
R13-247B: 3P SPST ON-OFF (Illuminated)
20A 12V DC 33*24 .250" SQ
R13-249 R13-249A: 2P SPST ON-OFF
R13-249B: 3P SPST ON-OFF (Illuminated)
R13-249C: 3P SPDT ON-ON
R13-249D: 3P SPDT ON-OFF-ON
R13-249L: 3P SPST ON-OFF (LED)

20A 12V DC   .250" SQ
R13-257 R13-257A: 2P SPST OFF-ON
R13-257B: 3P SPST OFF-ON (Illuminated)
R13-257L: 3P SPST OFF-ON

20A 14V DC
10A 24V DC
  .250" SQ
R13-258 R13-258A: 2P SPST ON-OFF
R13-258B: 3P SPST ON-OFF
(Illuminated)
R13-258C: 3P SPDT ON-ON
R13-258D: 3P SPDT ON-OFF-ON
R13-258E: 2P SPST ON-(OFF)
R13-258F: 2P SPST (ON)-OFF
R13-258I: 6P DPDT (ON)-OFF-(ON)
R13-258H: 6P DPDT ON-OFF-(ON)
R13-258G: 6P DPDT ON--(ON)

20A 14V DC
20A 24V DC
  .250" SQ
R13-260 R13-260A: 2P SPST ON-OFF
R13-260B: 6P DPDT ON-ON
R13-260C: 3P SPDT ON-ON
R13-260D: 3P SPDT ON-OFF-ON
R13-260E: 6P DPDT ON-OFF-ON
R13-260F: 4P DPST ON-OFF
R13-260G: 3P SPDT (ON)-OFF-(ON)
R13-260H: 3P SPDT ON-OFF-(ON)
R13-260I: 3P SPDT ON-(ON)
R13-260K: 6P DPDT (ON)-OFF-(ON)
R13-260M: 6P DPDT ON-OFF-(ON)
R13-260N: 2P SPST (ON)-OFF
R13-260P: 6P DPDT ON-(ON)
R13-260Q: 4P DPST ON-(OFF)
R13260R: 2P SPST ON-(OFF)
R13-260S: 4P DPST (ON)-OFF
21A 14V DC

.250" SQ
SAE SQ
SO
SC 6-32UNC

R13-261 R13-261A: 4P DPST ON-OFF 10A 12V DC   .187" SQ
R13-263 R13-263A: 2P SPST ON-OFF
R13-263B: 6P DPDT ON-ON
R13-263C: 3P SPDT ON-ON
R13-263D: 3P SPDT ON-OFF-ON
R13-263E: 6P DPDT ON-OFF-ON
R13-263F: 4P DPST ON-OFF
R13-263G: 3P SPDT (ON)-OFF-(ON)
R13-263H: 3P SPDT ON-OFF-(ON)
R13-263I: 3P SPDT ON-(ON)
R13-263K: 6P DPDT (ON)-OFF-(ON)
R13-263M: 6P DPDT ON-OFF-(ON)
R13-263N: 2P SPST (ON)-OFF
R13-263P: 6P DPDT ON-(ON)
R13-263Q: 4P DPST ON-(OFF)
R13263R: 2P SPST ON-(OFF)
R13-263S: 4P DPST (ON)-OFF
21A 14V DC
10A 24V DC
  .250" SQ
SAE SQ
SO
SC 6-32UNC
R13-268 R13-268A: 4P DPST ON-OFF
R13-268B: 4P DPST ON-OFF (Illuminated)
R13-268C: 6P DPDT ON-ON
R13-268CB: 6P DPDT ON-ON (Illuminated)
R13-268D: 6P DPDT ON-OFF-ON
R13-268G: 6P DPDT ON-(ON)
R13-268H: 6P DPDT ON-OFF-(ON)
R13-268I: 6P DPDT (ON)-OFF-(ON)

20A 12V DC

Ø20.2

.187" SQ
R13-271 R13-271A: 2P SPST ON-OFF
R13-271B: 6P DPDT ON-ON
R13-271C: 3P SPDT ON-ON
R13-271D: 3P SPDT ON-OFF-ON
R13-271E: 6P DPDT ON-OFF-ON
R13-271F: 4P DPST ON-OFF
R13-271G: 3P SPDT (ON)-OFF-(ON)
R13-271H: 3P SPDT ON-OFF-(ON)
R13-271I: 3P SPDT ON-(ON)
R13-271K: 6P DPDT (ON)-OFF-(ON)
R13-271M: 6P DPDT ON-OFF-(ON)
R13-271N: 2P SPST (ON)-OFF
R13-271P: 6P DPDT ON-(ON)
R13-271Q: 4P DPST ON-(OFF)
R13271R: 2P SPST ON-(OFF)
R13-271S: 4P DPST (ON)-OFF
21A 14V DC   .250" SQ

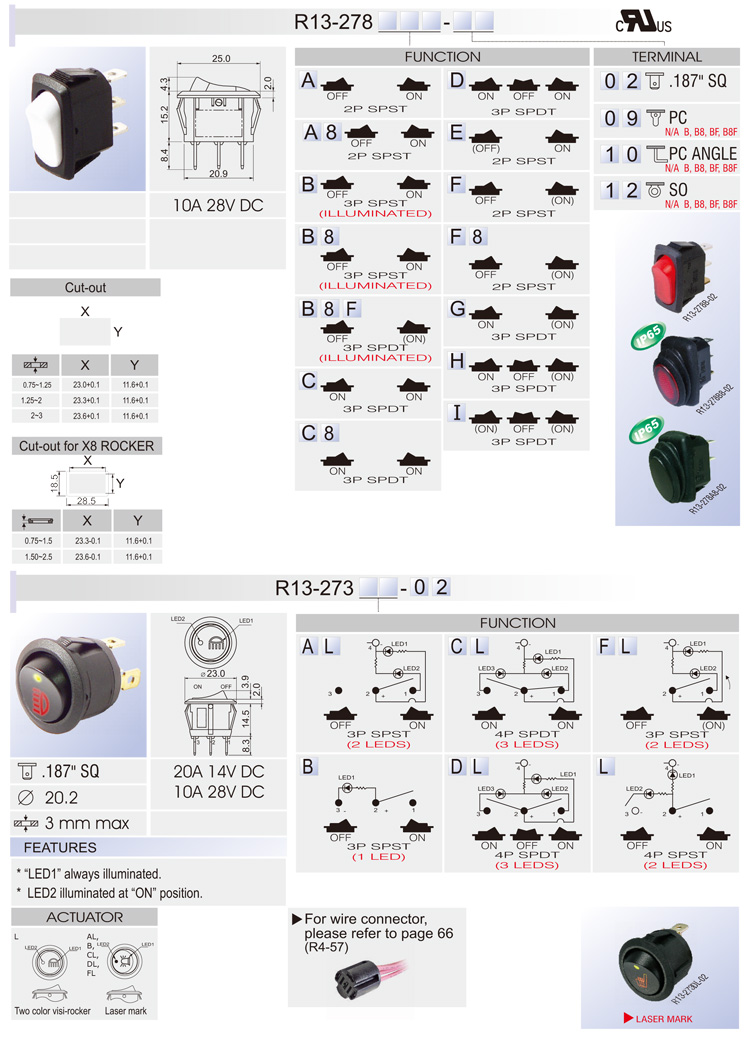

R13-273 R13-273AL: 3P SPST ON-OFF (2 LEDS)
R13-273B: 3P SPST ON-OFF (1 LED)
R13-273CL: 4P SPDT ON-ON (3 LEDS)
R13-273DL: 4P SPDT ON-OFF-ON (3 LEDS)
R13-273FL: 3P SPST OFF-(ON) (2 LEDS)
R13-273L: 4P SPST ON-OFF (2 LEDS)
20A 14V DC
10A 28V DC
Ø20.2 .187" SQ
R13-278 R13-278A.A8: 2P SPST ON-OFF
R13-278.B8: 3P SPST ON-OFF (Illuminated)
R13-278B8F: 3P SPDT (ON)-OFF
R13-278C.CB: 3P SPDT ON-ON
R13-278D: 3P SPDT ON-OFF-ON
R13-278E: 2P SPST ON-(OFF)
R13-278F.F8: 2P SPST (ON)-OFF
R13-278G: 3P SPDT ON-(ON)
R13-278H: 3P SPDT ON-OFF-(ON)
R13-278I: 3P SPDT (ON)-OFF-(ON)

20A 28V DC



.187" SQ
PC
PC ANGLE
SO
R13-282 R13-282A: 2P SPST ON-OFF
R13-282B: 6P DPDT ON-ON
R13-282C: 3P SPDT ON-ON
R13-282D: 3P SPDT ON-OFF-ON
R13-282E: 6P DPDT ON-OFF-ON
R13-282F: 4P DPST ON-OFF
R13-282G: 3P SPDT (ON)-OFF-(ON)
R13-282H: 3P SPDT ON-OFF-(ON)
R13-282I: 3P SPDT ON-(ON)
R13-282K: 6P DPDT (ON)-OFF-(ON)
R13-282M: 6P DPDT ON-OFF-(ON)
R13-282N: 2P SPST (ON)-OFF
R13-282P: 6P DPDT ON-(ON)
R13-282Q: 4P DPST ON-(OFF)
R13-282R: 2P SPST ON-(OFF)
R13-282S: 4P DPST (ON)-OFF
21A 14V DC
10A 28V DC
44.04*22.02 .250" SQ
R13-285

R13-285AL.A8L: 4P DPST ON-OFF (LED)
R13-285A8: 4P DPST ON-OFF
R13-285CL.C8L: 6P DPDT ON-ON (LED)
R13-285C8: 6P DPDT ON-ON

20A 14V DC

  .250" SQ
R13-289

R13-289A: 2P SPST ON-OFF
R13-289C: 3P SPDT ON-ON
R13-289D: 3P SPDT ON-OFF-ON
R13-289F: 4P DPST ON-OFF
R13-289B: 6P DPDT ON-ON
R13-289E: 6P DPDT ON-OFF-ON

20A 14V DC
10A 28V DC

44.6*22.2
R13-290

R13-290AL: 4P SPST ON-OFF (LED)
R13-290CL: 5P SPDT ON-ON (LED)

3A 12V DC

Ø18.0 SO

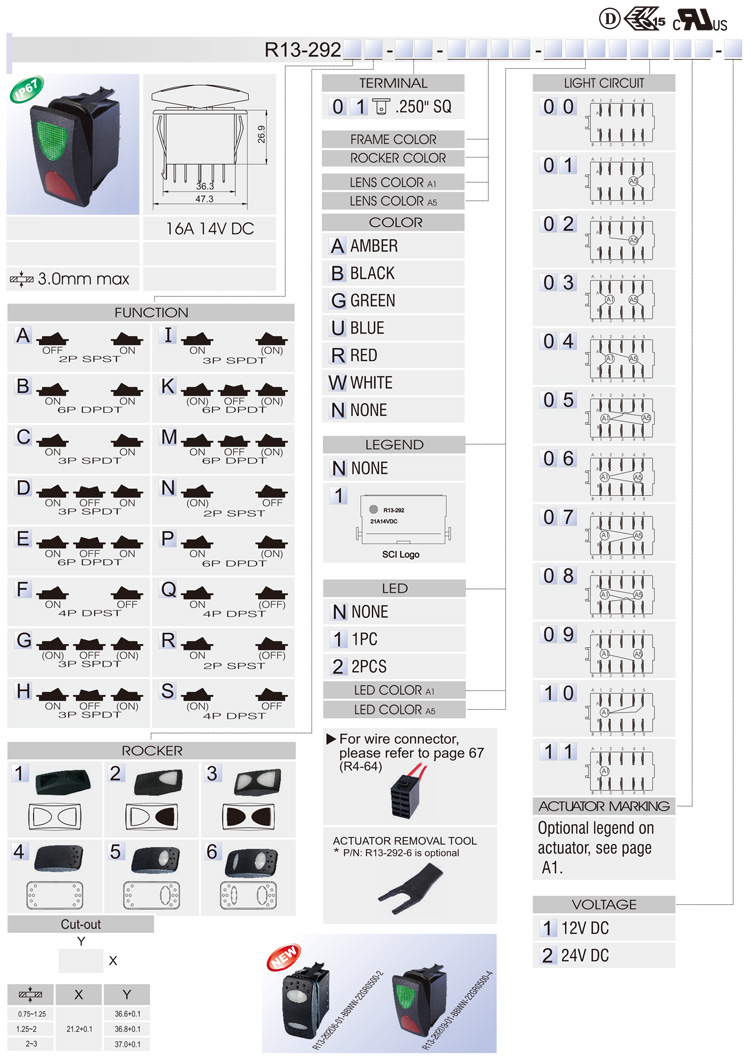

R13-292 R13-292A: 2P SPST ON-OFF
R13-292B: 6P DPDT ON-ON
R13-292C: 3P SPDT ON-ON
R13-292D: 3P SPDT ON-OFF-ON
R13-292E: 6P DPDT ON-OFF-ON
R13-292F: 4P DPST ON-OFF
R13-292G: 3P SPDT (ON)-OFF-(ON)
R13-292H: 3P SPDT ON-OFF-(ON)
R13-292I: 3P SPDT ON- (ON)
R13-292K: 6P DPDT (ON)-OFF-(ON)
R13-292M: 6P DPDT ON-OFF-(ON)
R13-292N: 2P SPST (ON)-OFF
R13-292P: 6P DPDT ON-(ON)
R13-292Q: 4P DPST ON-(OFF)
R13-292R: 2P SPST ON-(OFF)
R13-292S: 4P DPST (ON)-OFF

21A 14V DC

  .250" SQ
R13-293

R13-293A: 2P SPST ON-OFF
R13-293B: 3P SPST ON-OFF (Illuminated)
R13-293C: 3P SPDT ON-ON

20A 12V DC

Ø22.0 .250" SQ
R13-294 R13-282A: 2P SPST ON-OFF
R13-282B: 6P DPDT ON-ON
R13-282C: 3P SPDT ON-ON
R13-282D: 3P SPDT ON-OFF-ON
R13-282E: 6P DPDT ON-OFF-ON
R13-282F: 4P DPST ON-OFF
R13-282G: 3P SPDT (ON)-OFF-(ON)
R13-282H: 3P SPDT ON-OFF-(ON)
R13-282I: 3P SPDT ON-(ON)
R13-282K: 6P DPDT (ON)-OFF-(ON)
R13-282M: 6P DPDT ON-OFF-(ON)
R13-282N: 2P SPST (ON)-OFF
R13-282P: 6P DPDT ON-(ON)
R13-282Q: 4P DPST ON-(OFF)
R13-282R: 2P SPST ON-(OFF)
R13-282S: 4P DPST (ON)-OFF
21A 14V DC   .250" SQ
R13-1278 R13-1278A: 2P SPST ON-OFF
R13-1278B: 3P SPST ON-OFF (Illuminated)
R13-1278BF: 3P SPST (ON)-OFF (Illuminated)
R13-1278C: 3P SPDT ON-ON
R13-1278F: 2P SPST (ON)-OFF

10A 28V DC
6A 14VT

  .187" SQ
