Switches / Tact Switches / Series 6x6

Series TSTP66H

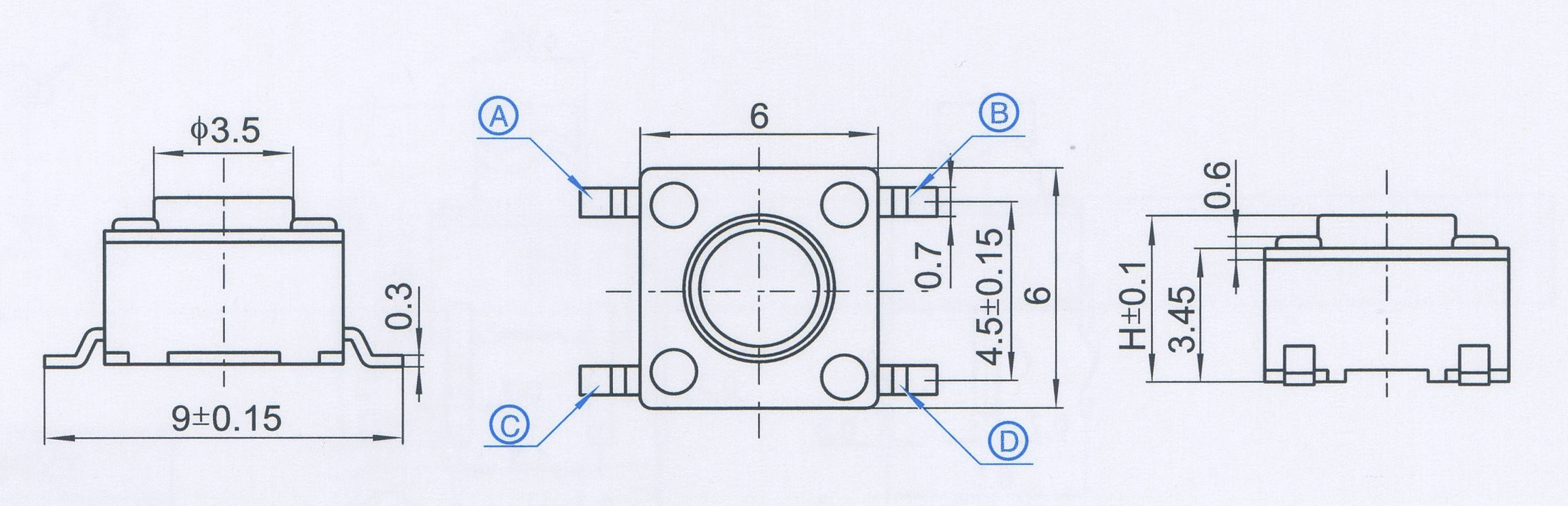

6x6 SMD Type Tact Switch

TSTP66H, 6x6 SMD Type Tact switch

Rating: 50mA 12VDC
Contact Resistance: 50 mΩ max. (initial)
Insulation Resistance: 100 MΩ (min DC 250V)
Dielectric Strength: AC 250V (50/60Hz for 1 min.)
Electrically Life: 80000 cycles
Environment temperature: -25...+105°C
Operating Force: 180 / 250±30 gf

Type H, mm
TSTP6643-1 4.3
TSTP6650-1 5.0
TSTP6660-1 6.0
TSTP6670-1 7.0
TSTP6680-1 8.0

Type H, mm
TSTP6643-2 4.3
TSTP6650-2 5.0
TSTP6660-2 6.0
TSTP6670-2 7.0
TSTP6680-2 8.0

Type H, mm
TSTP6643-3 4.3
TSTP6650-3 5.0
TSTP6660-3 6.0
TSTP6670-3 7.0
TSTP6680-3 8.0

Type H, mm
TSTP6643-4 4.3
TSTP6650-4 5.0
TSTP6660-4 6.0
TSTP6670-4 7.0
TSTP6680-4 8.0
