Switches / Tact Switches /

Tact Switches
Series TC (Snap-in Type)
TC-0010, Series TC (Snap-in Type), Tact Switches TC-0010 Rating: DC 12V 50mA
Travel: 0.25±0.1mm
Contact Resistance: 100 mΩ max.
Stem Length (L): 3.8mm

Code Operating force
(gf)
V 130±30
Z 250±100
Drawing
TC-0020, Series TC (Snap-in Type), Tact Switches TC-0020
Soft Touch		 Rating: DC 12V 5mA
Travel: 1.0±0.2mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
V 130 ± 30
Drawing
TC-0031, Series TC (Snap-in Type), Tact Switches TC-0031 Rating: DC 30V 0.1A Drawing
TC-0090, Series TC (Snap-in Type), Tact Switches TC-0090 Rating: DC 30V 0.1A Drawing

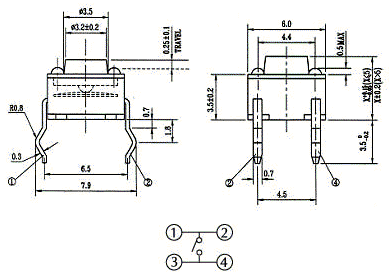

TC-0102, Series TC (Snap-in Type), Tact Switches
  L (mm)
TC-0102 4.3
TC-0103 5.0
TC-0104 7.0
TC-0105 7.3
TC-0106 8.0
TC-0107 8.5
TC-0108 9.5
TC-0109 12.5
TC-A109 13.0
TC-0110 13.5
TC-0111 17.0
Rating: DC 12V 50mA
Travel: 0.25±0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
W 170 ± 50
Y 190 ± 50
Z 250 ± 100
N 350 ± 100
Drawing
TC-0112, Series TC (Snap-in Type), Tact Switches
TC-0119, Series TC (Snap-in Type), Tact Switches
  L (mm)
TC-0112 4.3
TC-0113 5.0
TC-0114 7.0
TC-0115 7.3
TC-0116 8.0
TC-0117 8.5
TC-0118 9.5
TC-0119 12.5
Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
W 170 ± 50
Y 190 ± 50
Z 250 ± 100
Drawing
TC-0120, Series TC (Snap-in Type), Tact Switches
  L (mm)
TC-0120 4.3
TC-0121 5.0
TC-0122 8.0
Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
Y 180 ± 40
Z 250 ± 50
Drawing
TC-0202, Series TC (Snap-in Type), Tact Switches
  L (mm)
TC-0202 3.15
TC-0203 3.85
TC-0204 5.85
TC-0205 8.35
TC-0206 6.85
TC-0207 11.35
TC-0208 6.15
TC-0209 11.85
TC-0210 12.35
Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
W 170 ± 50
Y 190 ± 50
Z 250 ± 100
Drawing
TC-0240, Series TC (Snap-in Type), Tact Switches
  L (mm)
TC-0240 3.15
TC-0241 3.85
TC-0242 5.85
TC-0243 8.35
TC-0244 6.85
TC-0245 11.35
TC-0246 6.15
Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
W 170 ± 50
Y 190 ± 50
Z 250 ± 100
Drawing
TC-024V, Series TC (Snap-in Type), Tact Switches
  Stem Dimention
 (mm)
TC-024V 3.15
TC-028V 3.85
Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
W 170 ± 50
Y 190 ± 50
Z 250 ± 100
Drawing
TC-0250, Series TC (Snap-in Type), Tact Switches
  L (mm)
TC-0250 4.3
TC-0251 5.0
TC-0252 7.0
TC-0253 9.5
TC-0254 8.0
TC-0255 12.5
TC-0256 7.3
Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
W 170 ± 50
Y 190 ± 50
Z 250 ± 100
Drawing
TC-0302, Series TC (Snap-in Type), Tact Switches
  L (mm)
TC-0302 4.3
TC-0303 5.0
TC-0304 7.0
TC-0305 7.3
TC-0306 8.0
TC-0307 8.5
TC-0308 9.5
TC-0309 12.5
Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
W 170 ± 50
Y 190 ± 50
Z 250 ± 100
Drawing
TC-0312, Series TC (Snap-in Type), Tact Switches
  L (mm)
TC-0312 4.3
TC-0313 5.0
TC-0314 7.0
TC-0315 7.3
TC-0316 8.0
TC-0318 9.5
TC-0319 12.5
Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
W 170 ± 50
Y 190 ± 50
Z 250 ± 100
Drawing
TC-0324, Series TC (Snap-in Type), Tact Switches TC-0324 Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.
Stem Dimention: 2.4x2.4 mm

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
W 170 ± 50
Y 190 ± 50
Z 250 ± 100
Drawing
TC-0328, Series TC (Snap-in Type), Tact Switches TC-0328 Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.
Stem Dimention: 2.8x2.8 mm

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
W 170 ± 50
Y 190 ± 50
Z 250 ± 100
Drawing

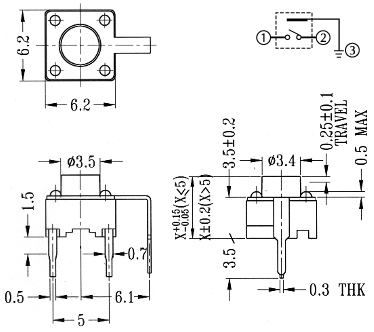

TC-0402, Series TC (Snap-in Type), Tact Switches
  L (mm)
TC-0402 4.3
TC-0403 5.0
TC-0404 7.0
TC-0405 7.3
TC-0406 8.0
TC-0407 8.5
TC-0408 9.5
TC-0409 12.5
Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
W 170 ± 50
Y 190 ± 50
Z 250 ± 100
Drawing
TC-0412, Series TC (Snap-in Type), Tact Switches
  L (mm)
TC-0411 17.0
TC-0412 4.3
TC-0413 5.0
TC-0414 7.0
TC-0415 7.3
TC-0416 8.0
TC-0417 8.5
TC-0418 9.5
TC-0419 12.5
TC-0419A 13.0
TC-0420 13.5
Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
W 170 ± 50
Y 190 ± 50
Z 250 ± 100
Drawing
TC-0424, Series TC (Snap-in Type), Tact Switches TC-0424 Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
W 170 ± 50
Y 190 ± 50
Z 250 ± 100
Drawing
TC-0502, Series TC (Snap-in Type), Tact Switches
  L (mm)
TC-0501 3.05
TC-0502 3.15
TC-0503 3.85
TC-A503 4.85
TC-0504 5.85
TC-0505 8.35
TC-0506 6.85
TC-0507 11.35
Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
W 170 ± 50
Y 190 ± 50
Z 250 ± 100
Drawing
TC-0507, Series TC (Snap-in Type), Tact Switches TC-0507 Rating: DC 12V 50mA Drawing
TC-12EA, Series TC (Snap-in Type), Tact Switches
  Guide Pin
TC-12EA With
TC-12XA Without
Rating: DC 12V 50mA
Travel: 0.3±0.15mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
X 160 ± 50
Z 250 ± 100

Cover Type Code
Plastic A01
Metal A00
Drawing
TC-12EB, Series TC (Snap-in Type), Tact Switches
  Guide Pin Tape & Real
Option
TC-12EB With No
TC-12XB Without No
Rating: DC 12V 50mA
Travel: 0.3±0.15mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
X 160 ± 50
Z 250 ± 100

Cover Type Code
Plastic A01
Metal A00
Drawing
TC-12EC, Series TC (Snap-in Type), Tact Switches
  Guide Pin Tape & Real
Option
TC-12EC With No
TC-12XC Without No
Rating: DC 12V 50mA
Travel: 0.3 ± 0.15mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
X 160 ± 50
Z 250 ± 100

Cover Type Code
Plastic A01
Metal A00
Drawing
TC-12ED, Series TC (Snap-in Type), Tact Switches
  Guide Pin Tape & Real
Option
TC-12ED With No
TC-12XD Without No
Rating: DC 12V 50mA
Travel: 0.3 ± 0.15mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
X 160 ± 50
Z 250 ± 100

Cover Type Code
Plastic A01
Metal A00
Drawing
TC-12EF, Series TC (Snap-in Type), Tact Switches
  Guide Pin
TC-12EF With
TC-12XF Without
Rating: DC 12V 50mA
Travel: 0.3 ± 0.15mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
X 160 ± 50
Z 250 ± 100

Cover Type Code
Plastic A01
Metal A00
Drawing
TC-12ET, Series TC (Snap-in Type), Tact Switches
  Guide Pin
TC-12ET With
TC-12XT Without
Rating: DC 12V 50mA
Travel: 0.3 ± 0.15mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
X 160 ± 50
Z 250 ± 100

Cover Type Code
Plastic A01
Metal A00
Drawing
TC-17XA, Series TC (Snap-in Type), Tact Switches TC-17XA
Soft Touch		 Rating: DC 12V 50mA
Travel: 1.0 ± 0.2mm
Contact Resistance: 100 mΩ max.
Operating force: 120 ± 30gf		 Drawing
TC-22XA, Series TC (Snap-in Type), Tact Switches
  L (mm)
TC-22XA 10.0
TC-22XB 14.0
TC-22XC 4.7

Water Proof		 Rating: DC 12V 50mA
Travel: 0.5 ± 0.1mm
Contact Resistance: 100 mΩ max.
Operating force: 160 ± 50gf

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
Z 250 ± 100
Drawing
TC-120V, Series TC (Snap-in Type), Tact Switches
  L (mm)
TC-120V 3.15
TC-121V 3.85
TC-122V 6,85
Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
Y 180 ± 40
Z 250 ± 50
Drawing
TC-1131, Series TC (Snap-in Type), Tact Switches TC-1131
No click		 Rating: DC 12V 50mA
Travel: 1.2 ± 0.2mm
Contact Resistance: 100 mΩ max.
Operating force: 250 ± 50gf		 Drawing

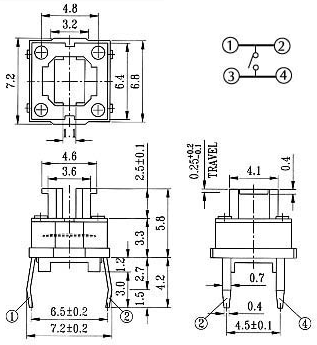

TC-1193, Series TC (Snap-in Type), Tact Switches TC-1193
LED Tact Switch		 Rating: DC 12V 50mA
Travel: 0.25+0.2-0.1mm
Contact Resistance: 100 mΩ max.
Operating force: 160 ± 50gf		 Drawing
TC-1194, Series TC (Snap-in Type), Tact Switches TC-1194
LED Tact Switch		 Rating: DC 12V 50mA
Travel: 0.25+0.2-0.1mm
Contact Resistance: 100 mΩ max.
Operating force: 160 ± 50gf		 Drawing
TC-2301, Series TC (Snap-in Type), Tact Switches
  L (mm)
TC-2301 4.2
TC-2302 4.3
TC-2303 5.0
TC-A2303 6.0
TC-2304 7.0
TC-2305 7.3
TC-2306 8.0
TC-2307 8.5
Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
W 170 ± 50
Y 190 ± 50
Z 250 ± 100
Drawing
TC-2324, Series TC (Snap-in Type), Tact Switches TC-2324 Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
W 170 ± 50
Y 190 ± 50
Z 250 ± 100
Drawing
TC-2324A, Series TC (Snap-in Type), Tact Switches TC-2324A Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
W 170 ± 50
Y 190 ± 50
Z 250 ± 100
Drawing
TC-2401, Series TC (Snap-in Type), Tact Switches
  S
 (mm)		 L
(mm)
TC-2401 2,4x2,4 3,6
TC-2402 2,4x2,4 3,9
TC-2801 2,8x2,8 3,6
Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf) 		Service Life
(Cycles)
T 100 ± 30 >=500000
V 130 ± 30 >=500000
X 160 ± 50 >=300000
W 170 ± 50 >=300000
Y 190 ± 50 >=150000
Z 250 ± 100 >=100000
Drawing
TC-2412, Series TC (Snap-in Type), Tact Switches
  S (mm) L (mm)
TC-2412 2,4x2,4 3,6
Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
T 100 ± 30
V 130 ± 30
X 160 ± 50
W 170 ± 50
Y 190 ± 50
Z 250±100
N 350 ± 100
R 500±100
Drawing
TC-3120, Series TC (Snap-in Type), Tact Switches
  X (mm)
TC-3120 4.3
TC-3121 5.0
TC-3122 8.0
Rating: DC 12V 50mA
Travel: 0.25 ± 0.1mm
Contact Resistance: 100 mΩ max.

Code Operating force
(gf)
Y 180 ± 50
Z 250±100
Drawing
TC-3303, Series TC (Snap-in Type), Tact Switches TC-3303
 Rating: DC 12V 50mA Drawing



  Copyright(c) 2007 by BENTEX CO. All Right Reserved.
E-mail: sales@bentex.com.hk
Tel: +86 755-6168-1302 Fax: +86 755-8276-4016
