Thermistors / NTC /

Series MF52

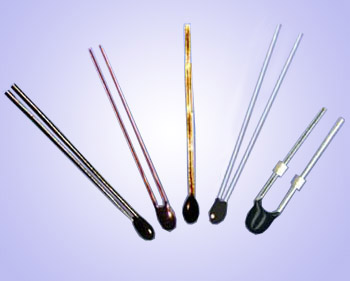

Pearl-Shape Temp Measurement NTC Thermistor series

Characteristics
* High Testing Precision
* Small size, Fast response
* Steady Operating for Long Time
* Good Quality of Coherence and Interchange
* Scale production, high ratio of Features to cost

Applications
* Air-condition Equipments
* Heating Apparatus
* Electric Thermometer
* Liquid Level Sensor
* Automobile Electricity
* Electric Table-board
* Battery of Mobile Telephone

Specification

MF52-	B	103	G	3380
1	2	3	4	5

1 - Type: Pearl-shape temperature measurement NTC thermistor
2 - Different Configuration and code: Model B is Enamelled CU Wire
3 - Rated Resistance: 103 is 10KΩ
4 - Allowable tolerance code:
     F±1%
     G±2%
     H±3%
     J±5%
     K±10%
5 - B Value: namely 3380K

Part No	Rated Resistance R25 (KΩ)	B Value (25/50°C) (K)	Rated Power (mw)	Dissi. Coef. (mW/°C)	Thermal time Constant (S)	Operating Temp. (°C)
MF52xxx3100	0.1-20	3100	<50	>2.0 In Still Air	<7 In Still Air	-55...+125°C
MF52xxx3270	0.2-20	3270
MF52xxx3380	0.5-50	3380
MF52xxx3470	0.5-50	3470
MF52xxx3600	1 -100	3600
MF52xxx3950	5-100	3950
MF52xxx4000	5-100	4000
MF52xxx4050	5-200	4050
MF52xxx4150	10-250	4150
MF52xxx4300	20-1000	4300
MF52xxx4500	20-1000	4500

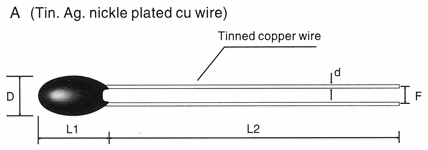

Type A

Code	D max	L1 max	L2 min	d ±0.05	F ±0.05
A1	2	3.5	25	0.3	2.0
A2	3	4	25	0.45	2.5

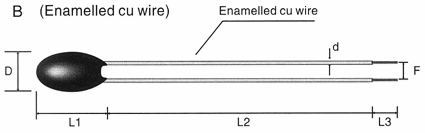

Type B

Code	D max	L1 max	L2 min	L3 ±1	d ±0.05	F ±0.05
B1	2	3.5	by user determine	5	0.2	2.0
B2	3	4	by user determine	5	0.3	2.5

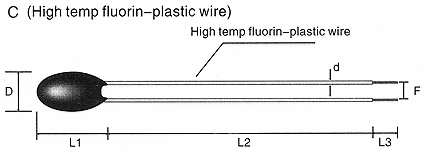

Type C

Code	D max	L1 max	L2 min	L3 ±1	d ±0.05	F ±0.05
C1	3	3.5	by user determine	5	0.4	2.0
C2	4	4	by user determine	5	0.5	2.5

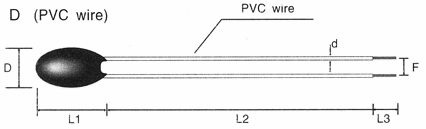

Type D

Code	D max	L1 max	L2 min	L3 ±1	d ±0.05	F ±0.05
D1	3	3.5	by user determine	5	0.26	2.5
D2	4	4	by user determine	5	0.32	2.5

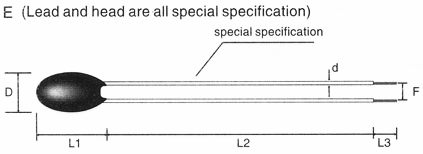

Type E

Code	D max	L1 max	L2 min	L3 ±1	d ±0.05	F ±0.05
E1	by user deter- mine	by user deter- mine	by user deter- mine	5	by user deter- mine	2.5
E2	by user deter- mine	by user deter- mine	by user deter- mine	5	by user deter- mine	2.5

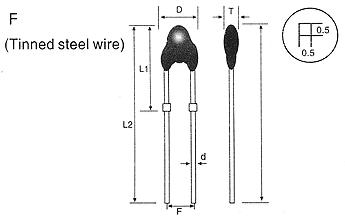

Type F

Code	D max	L1 max	L2 ±1.5	d max	F ±0 .5	Tmax
F	3.8	9.5	17	0.5	2.5	3.5

Series MF52 Pearl-Shape Temp Measurement NTC Thermistor series

Series MF52
Pearl-Shape Temp Measurement NTC Thermistor series
