Thermistors / PTC /
SMD0805, SMD1206 series
 |
 |
| Part Number |
Lhold |
Itrip |
Vmax |
Imax |
pdmax. |
Maximum Time To Trip |
Resitance |
Agemcy
Approval |
| (A) |
(A) |
(Vdc) |
(A) |
(W) |
Current
(A) |
Time
(Sec) |
R min
(Ω) |
R tvp
(Ω) |
R Imax
(Ω) |
| SMD0805P010TS |
0.10 |
0.30 |
1 5 |
40 |
0.50 |
0.50 |
1.50 |
1 .000 |
3.500 |
6.000 |
UL, CSA, TUV |
| SMD0805P020TS |
0.20 |
0.50 |
9 |
40 |
0.50 |
8.00 |
0.02 |
0.650 |
2.000 |
3.500 |
UL, CSA, TUV |
| SMD0805P035TS |
0.35 |
0.75 |
6 |
40 |
0.50 |
8.00 |
0.10 |
0.250 |
0.750 |
1 .200 |
UL, CSA, TUV |
| SMD0805P050TS |
0.50 |
1 .00 |
6 |
40 |
0.50 |
8.00 |
0.10 |
0.150 |
0.500 |
0.850 |
UL, CSA, TUV |
| SMD0805P075TS |
0.75 |
1 .50 |
6 |
40 |
0.50 |
8.00 |
0.20 |
0.090 |
- |
0.350 |
UL, CSA |
| SMD0805P100TS |
1 .00 |
0.95 |
6 |
40 |
0.50 |
8.00 |
0.30 |
0.060 |
- |
0.210 |
UL, CSA |
| SMD1206P012TS |
0.125 |
0.290 |
30 |
20 |
0.60 |
1 .00 |
0.20 |
1 .500 |
- |
6.000 |
UL, CSA, TUV |
| SMD1206P016TS |
0.16 |
0.37 |
30 |
20 |
0.60 |
1 .00 |
0.30 |
1 .200 |
- |
4.500 |
UL, CSA, TUV |
| SMD1206P020TS |
0.20 |
0.40 |
16 |
40 |
0.60 |
8.00 |
0.05 |
0.600 |
- |
2.500 |
UL, CSA, TUV |
| SMD1206P025TS |
0.25 |
0.50 |
16 |
40 |
0.60 |
8.00 |
0.08 |
0.550 |
- |
2.300 |
UL, CSA, TUV |
| SMD1206P035TS |
0.35 |
0.75 |
6 |
40 |
0.60 |
8.00 |
0.10 |
0.300 |
0.750 |
1 .200 |
UL, CSA, TUV |
| SMD1206P035TS/15 |
0.35 |
0.75 |
15 |
40 |
0.60 |
8.00 |
0.10 |
0.300 |
- |
1 .200 |
UL, CSA |
| SMD1206P050TS |
0.50 |
1 .00 |
6 |
40 |
0.60 |
8.00 |
0.10 |
0.150 |
0.400 |
0.700 |
UL, CSA, TUV |
| SMD1206P012TS/15 |
0.50 |
1 .00 |
15 |
40 |
0.60 |
8.00 |
0.10 |
0.150 |
- |
0.750 |
UL, CSA |
| SMD1206P075TS |
0.75 |
1 .50 |
6 |
40 |
0.60 |
8.00 |
0.20 |
0.090 |
0.200 |
0.290 |
UL, CSA, TUV |
| SMD1206P100TS |
1.00 |
1 .80 |
6 |
40 |
0.60 |
8.00 |
0.30 |
0.055 |
0.1 10 |
0.210 |
UL, CSA, TUV |
| SMD1206P150TS |
1.50 |
3.00 |
6 |
40 |
0.80 |
8.00 |
1 .00 |
0.040 |
0.080 |
0.120 |
UL, CSA, TUV |

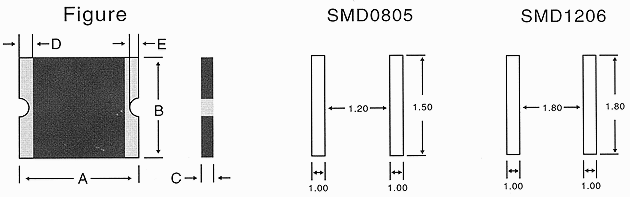

PHYSICAL DIMENSIONS (mm)
| Part Number |
A |
B |
C |
D |
E |
| Min. |
Max. |
Min. |
Max. |
Min. |
Max. |
Min. |
Min. |
Max. |
| SMD0805P010TS |
2.00 |
2.20 |
1.20 |
1.50 |
0.55 |
1.00 |
0.20 |
0.10 |
0.45 |
| SMD0805P020TS |
2.00 |
2.20 |
1.20 |
1.50 |
0.55 |
1.00 |
0.20 |
0.10 |
0.45 |
| SMD0805P035TS |
2.00 |
2.20 |
1.20 |
1.50 |
0.45 |
0.75 |
0.20 |
0.10 |
0.45 |
| SMD0805P050TS |
2.00 |
2.20 |
1.20 |
1.50 |
0.75 |
1.25 |
0.20 |
0.10 |
0.45 |
| SMD0805P075TS |
2.00 |
2.20 |
1.20 |
1.50 |
0.75 |
1.25 |
0.20 |
0.15 |
0.45 |
| SMD0805P100TS |
2.00 |
2.20 |
1.20 |
1.50 |
0.80 |
1.80 |
0.20 |
0.15 |
0.45 |
| SMD1206P012TS |
3.00 |
3.50 |
1.50 |
1.80 |
0.65 |
1.25 |
0.20 |
0.10 |
0.45 |
| SMD1206P016TS |
3.00 |
3.50 |
1.50 |
1.80 |
0.65 |
1.25 |
0.20 |
0.10 |
0.45 |
| SMD1206P020TS |
3.00 |
3.50 |
1.50 |
1.80 |
0.50 |
1.00 |
0.20 |
0.10 |
0.45 |
| SMD1206P025TS |
3.00 |
3.50 |
1.50 |
1.80 |
0.50 |
1.00 |
0.20 |
0.10 |
0.45 |
| SMD1206P035TS |
3.00 |
3.50 |
1.50 |
1.80 |
0.45 |
0.75 |
0.20 |
0.10 |
0.45 |
| SMD1206P035TS/15 |
3.00 |
3.50 |
1.50 |
1.80 |
0.45 |
0.75 |
0.20 |
0.10 |
0.45 |
| SMD1206P050TS |
3.00 |
3.50 |
1.50 |
1.80 |
0.45 |
0.75 |
0.20 |
0.10 |
0.45 |
| SMD1206P050TS/15 |
3.00 |
3.50 |
1.50 |
1.80 |
0.45 |
0.75 |
0.20 |
0.10 |
0.45 |
| SMD1206P075TS |
3.00 |
3.50 |
1.50 |
1.80 |
0.45 |
1.25 |
0.20 |
0.10 |
0.45 |
| SMD1206P100TS |
3.00 |
3.50 |
1.50 |
1.80 |
0.75 |
1.25 |
0.20 |
0.10 |
0.45 |
| SMD1206P150TS |
3.00 |
3.50 |
1.50 |
1.80 |
0.80 |
1.80 |
0.20 |
0.10 |
0.45 |
|
