Thermistors / PTC /
SMD1210, SMD1812 series
 |
 |
| Part Number |
Lhold |
Itrip |
Vmax |
Imax |
pdmax. |
Maximum Time To Trip |
Resitance |
Agemcy
Approval |
| (A) |
(A) |
(Vdc) |
(A) |
(W) |
Current
(A) |
Time
(Sec) |
R min
(Ω) |
R tvp
(Ω) |
R Imax
(Ω) |
| SMD1210P005TS |
0.05 |
0.15 |
30 |
10 |
0.60 |
0.25 |
1.50 |
3.600 |
25.00 |
50.000 |
UL, CSA, TUV |
| SMD1210P010TS |
0.10 |
0.30 |
30 |
10 |
0.60 |
0.50 |
1.50 |
1.600 |
7.000 |
15.000 |
UL, CSA, TUV |
| SMD1210P020TS |
0.20 |
0.40 |
30 |
10 |
0.60 |
8.00 |
0.02 |
0.800 |
2.900 |
5.000 |
UL, CSA, TUV |
| SMD1210P035TS |
0.35 |
0.70 |
6 |
40 |
0.60 |
8.00 |
0.20 |
0.320 |
0.810 |
1.300 |
UL, CSA, TUV |
| SMD1210P050TS |
0.50 |
1.00 |
13.2 |
40 |
0.60 |
8.00 |
0.10 |
0.250 |
0.550 |
0.900 |
UL, CSA, TUV |
| SMD1210P075TS |
0.75 |
1.50 |
6 |
40 |
0.60 |
8.00 |
0.10 |
0.130 |
0.290 |
0.400 |
UL, CSA, TUV |
| SMD1210P110TS |
1.10 |
2.20 |
6 |
40 |
0.60 |
8.00 |
0.30 |
0.060 |
0.140 |
0.210 |
UL, CSA, TUV |
| SMD1210P150TS |
1.50 |
3.00 |
6 |
40 |
0.80 |
8.00 |
0.50 |
0.040 |
0.070 |
0.110 |
UL, CSA, TUV |
| SMD1812P010TS |
0.10 |
0.30 |
30 |
10 |
0.80 |
0.50 |
1.50 |
1.600 |
7.000 |
15.000 |
UL, CSA, TUV |
| SMD1812P014TS |
0.14 |
0.34 |
60 |
10 |
0.80 |
1.50 |
0.15 |
1.500 |
4.000 |
6.000 |
UL, CSA, TUV |
| SMD1812P020TS |
0.20 |
0.40 |
30 |
10 |
0.80 |
8.00 |
0.02 |
0.800 |
2.900 |
5.000 |
UL, CSA, TUV |
| SMD1812P050TS |
0.50 |
1.00 |
15 |
40 |
0.80 |
8.00 |
0.15 |
0.150 |
0.600 |
1.000 |
UL, CSA, TUV |
| SMD1812P075TS |
0.75 |
1.50 |
13.2 |
40 |
0.80 |
8.00 |
0.20 |
0.100 |
0.260 |
0.450 |
UL, CSA, TUV |
| SMD1812P075TS/24 |
0.75 |
1.50 |
24 |
40 |
0.80 |
8.00 |
0.20 |
0.110 |
0.200 |
0.290 |
UL, CSA, TUV |
| SMD1812P110TS |
1.10 |
2.20 |
6 |
40 |
0.80 |
8.00 |
0.30 |
0.040 |
0.120 |
0.210 |
UL, CSA, TUV |
| SMD1812P110TS/16 |
1.10 |
1.95 |
16 |
40 |
0.80 |
8.00 |
0.50 |
0.060 |
0.120 |
0.180 |
UL, CSA, TUV |
| SMD1812P125TS |
1.25 |
2.50 |
15 |
40 |
0.80 |
8.00 |
0.40 |
0.050 |
0.160 |
0.250 |
UL, CSA, TUV |
| SMD1812P150TS |
1.50 |
3.00 |
6 |
40 |
0.80 |
8.00 |
0.50 |
0.040 |
0.070 |
0.110 |
UL, CSA, TUV |
| SMD1812P160TS |
1.60 |
2.80 |
6 |
40 |
0.80 |
8.00 |
1.00 |
0.030 |
0.066 |
0.100 |
UL, CSA, TUV |
| SMD1812P160TS/8 |
1.60 |
2.80 |
8 |
40 |
0.80 |
8.00 |
1.00 |
0.030 |
0.066 |
0.100 |
UL, CSA, TUV |
| SMD1812P200TS |
2.00 |
3.50 |
8 |
40 |
0.80 |
8.00 |
2.00 |
0.020 |
0.040 |
0.060 |
UL, CSA, TUV |
| SMD1812P260TS |
2.60 |
5.20 |
6 |
40 |
0.80 |
8.00 |
2.50 |
0.015 |
0.030 |
0.047 |
UL, CSA, TUV |

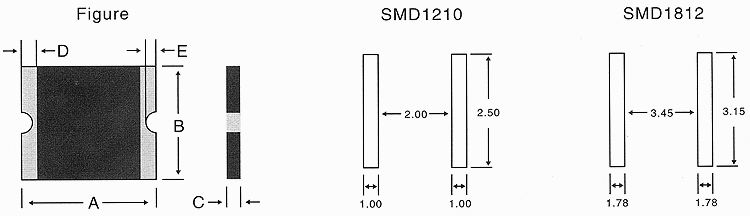

PHYSICAL DIMENSIONS (mm)
| Part Number |
A |
B |
C |
D |
E |
| Min. |
Max. |
Min. |
Max. |
Min. |
Max. |
Min. |
Min. |
Max. |
| SMD1210P005TS |
3.00 |
3.43 |
2.35 |
2.80 |
0.75 |
1.25 |
0.25 |
0.20 |
0.50 |
| SMD1210P010TS |
3.00 |
3.43 |
2.35 |
2.80 |
0.75 |
1.25 |
0.25 |
0.20 |
0.50 |
| SMD1210P020TS |
3.00 |
3.43 |
2.35 |
2.80 |
0.60 |
1.00 |
0.25 |
0.20 |
0.50 |
| SMD1210P035TS |
3.00 |
3.43 |
2.35 |
2.80 |
0.50 |
0.85 |
0.25 |
0.20 |
0.50 |
| SMD1210P050TS |
3.00 |
3.43 |
2.35 |
2.80 |
0.55 |
0.85 |
0.25 |
0.20 |
0.50 |
| SMD1210P075TS |
3.00 |
3.43 |
2.35 |
2.80 |
0.55 |
0.85 |
0.25 |
0.20 |
0.50 |
| SMD1210P110TS |
3.00 |
3.43 |
2.35 |
2.80 |
0.90 |
1.30 |
0.25 |
0.20 |
0.50 |
| SMD1210P150TS |
3.00 |
3.43 |
2.35 |
2.80 |
0.80 |
1.80 |
0.25 |
0.20 |
0.50 |
| SMD1812P010TS |
4.37 |
4.37 |
3.07 |
3.41 |
0.75 |
1.25 |
0.30 |
0.25 |
0.65 |
| SMD1812P014TS |
4.37 |
4.37 |
3.07 |
3.41 |
0.75 |
1.95 |
0.30 |
0.25 |
0.65 |
| SMD1812P020TS |
4.37 |
4.37 |
3.07 |
3.41 |
0.75 |
1.00 |
0.30 |
0.25 |
0.65 |
| SMD1812P050TS |
4.37 |
4.37 |
3.07 |
3.41 |
0.75 |
0.75 |
0.30 |
0.25 |
0.50 |
| SMD1812P075TS |
4.37 |
4.37 |
3.07 |
3.41 |
0.75 |
0.75 |
0.30 |
0.25 |
0.50 |
| SMD1812P075TS/24 |
4.37 |
4.37 |
3.07 |
3.41 |
0.75 |
1.55 |
0.30 |
0.25 |
0.65 |
| SMD1812P110TS |
4.37 |
4.37 |
3.07 |
3.41 |
0.75 |
0.75 |
0.30 |
0.25 |
0.50 |
| SMD1812P110TS/16 |
4.37 |
4.37 |
3.07 |
3.41 |
0.75 |
1.25 |
0.30 |
0.25 |
0.65 |
| SMD1812P125TS |
4.37 |
4.37 |
3.07 |
3.41 |
0.75 |
1.25 |
0.30 |
0.25 |
0.50 |
| SMD1812P150TS |
4.37 |
4.37 |
3.07 |
3.41 |
0.75 |
1.25 |
0.30 |
0.25 |
0.50 |
| SMD1812P160TS |
4.37 |
4.37 |
3.07 |
3.41 |
0.75 |
1.25 |
0.30 |
0.25 |
0.65 |
| SMD1812P160TS/8 |
4.37 |
4.37 |
3.07 |
3.41 |
0.75 |
1.25 |
0.30 |
0.25 |
0.65 |
| SMD1812P200TS |
4.37 |
4.37 |
3.07 |
3.41 |
0.75 |
1.55 |
0.30 |
0.25 |
0.50 |
| SMD1812P260TS |
4.37 |
4.37 |
3.07 |
3.41 |
0.80 |
1.80 |
0.30 |
0.25 |
0.50 |
|
