1713R-12xx series

double-row open angular pin header on the PCB for mounting holes, pitch 0.80 x 1.20 mm

1713R-12xx series, double-row open angular pin header on the PCB for mounting holes, pitch 0.80 x 1.20 mm, Board-to-Board connectors, pin headers and sockets > pitch 0.80 x 1.20 mm

Drawing

17131	R	-	XXX	G
1	2		3	4

1) series
     17131
2) type
     SM: for surface mounting (SMD)
     S: straight
     R: right angle
     DI: double insulator
     SMDI: for surface mounting (SMD) with double insulator
3) number of contacts 2...100
     XXX
4) gold plated
     G

Double-row open angular pin header on the PCB for mounting holes of this series are made in the form of a comb 2x50 Drawing. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 0.75 A AC/DC
Maximum voltage: 100 V AC/DC
Electric characteristic: 30 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

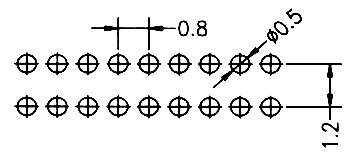

PCB layout

ID	Part.No.	number of contacts
179852	1713R-1201	2
179853	1713R-1202	4
179854	1713R-1203	6
179855	1713R-1204	8
179856	1713R-1205	10
179857	1713R-1206	12
179858	1713R-1207	14
179859	1713R-1208	16
179860	1713R-1209	18
179861	1713R-1210	20
179862	1713R-1211	22
179863	1713R-1212	24
179864	1713R-1213	26
179865	1713R-1214	28
179866	1713R-1215	30
179867	1713R-1216	32
179868	1713R-1217	34
179869	1713R-1218	36
179870	1713R-1219	38
179871	1713R-1220	40
179872	1713R-1221	42
179873	1713R-1222	44
179874	1713R-1223	46
179875	1713R-1224	48
179876	1713R-1225	50

ID	Part.No.	number of contacts
179877	1713R-1226	52
179878	1713R-1227	54
179879	1713R-1228	56
179880	1713R-1229	58
179881	1713R-1230	60
179882	1713R-1231	62
179883	1713R-1232	64
179884	1713R-1233	66
179885	1713R-1234	68
179886	1713R-1235	70
179887	1713R-1236	72
179888	1713R-1237	74
179958	1713R-1238	76
179959	1713R-1239	78
179960	1713R-1240	80
179961	1713R-1241	82
179962	1713R-1242	84
179963	1713R-1243	86
179964	1713R-1244	88
179965	1713R-1245	90
179966	1713R-1246	92
179967	1713R-1247	94
179968	1713R-1248	96
179969	1713R-1249	98
179970	1713R-1250	100

1713R-12xx series, double-row open angular pin header on the PCB for mounting holes, pitch 0.80 x 1.20 mm, Board-to-Board connectors, pin headers and sockets > pitch 0.80 x 1.20 mm

PCB layout
