| Connectors >> Board-to-Board connectors, pin headers and sockets for them >> pitch 1.00 mm |
2192SM4-XXXG-CP series |
double row straight sockets with guides on PCB for surface mounting (SMD), pitch 1.00 mm
|

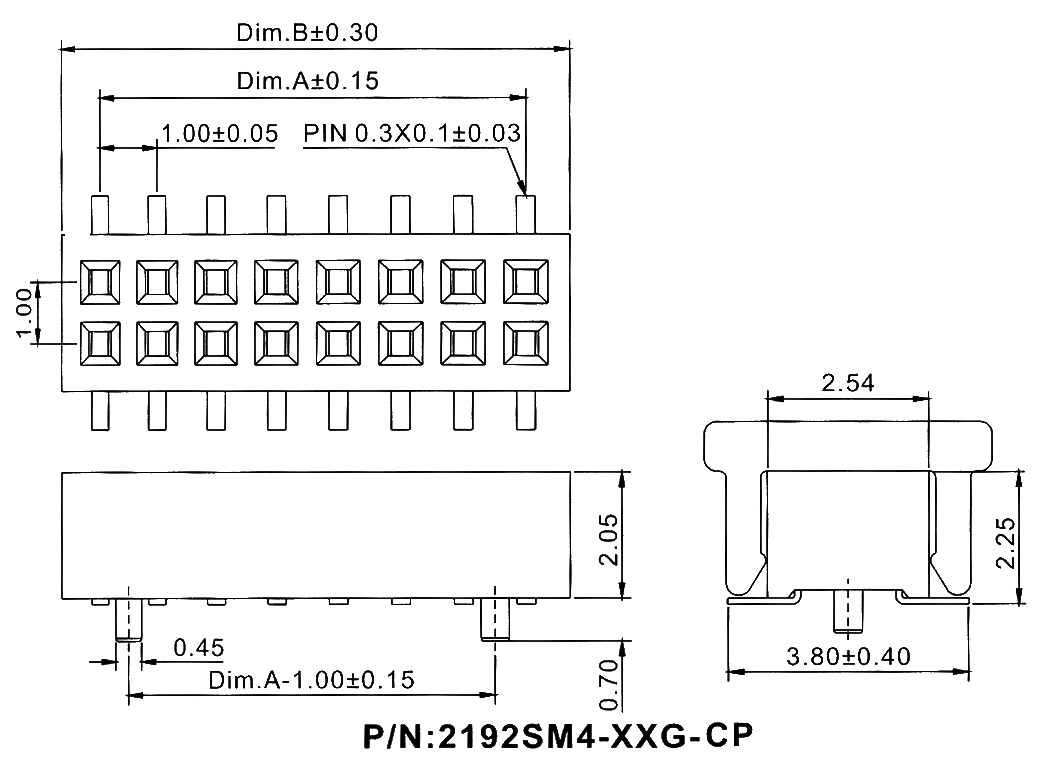

Drawing
|
| 2191 |
SM |
4 |
- |
XXX |
G |
- |
CP |
| 1 |
2 |
3 |
|
4 |
5 |
|
6 |
|
|
1) series, pitch 1,00 mm
2191
2) surface mount socket (SMD)
SM
3) guides to PCB
4: absent
4) number of contacts 8...100
XXX
5) gold plated
G
6) cover for automatic installation
CP
|
|
Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts. |
Electric characteristic:
Maximum current: 1 A AC/DC
Maximum voltage: 100 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 5000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
