BL1615-12XXS series

open double row straight pin headers on PCB for mounting holes, pitch 1.00 mm

BL1615-12XXS series, open double row straight pin headers on PCB for mounting holes, pitch 1.00 mm, Board-to-Board connectors, pin headers and sockets for them > pitch 1.00 mm

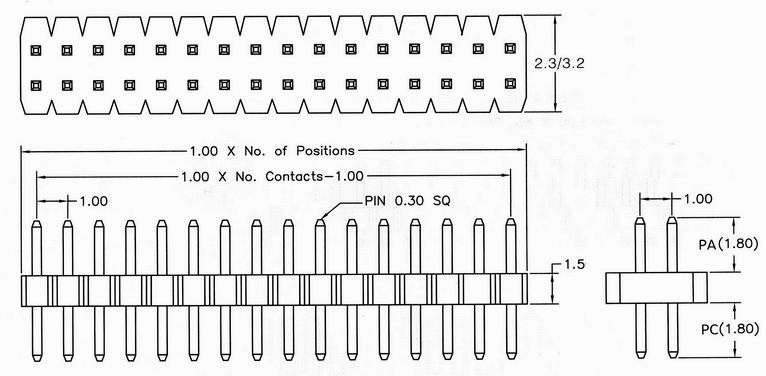

Drawing

BL1615	-	1	2	XX	S
1		2	3	4	5

1) series:
     BL1615: H=1,5 mm
2) Insulator:
     1: one
3) Number of rows:
     2: two
4) number of contacts per row:
     01 ... 50
5) Type:
     S: straight

Open double row straight pin headers on PCB for mounting holes of this series are made in the form of a comb 2x50 Drawing. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 0.75 A AC/DC
Maximum voltage: 100 V AC/DC
Electric characteristic: 30 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
190283	BL1615-1201S	1
190284	BL1615-1202S	2
190285	BL1615-1203S	3
190286	BL1615-1204S	4
190287	BL1615-1205S	5
190288	BL1615-1206S	6
190289	BL1615-1207S	7
190290	BL1615-1208S	8
190291	BL1615-1209S	9
190292	BL1615-1210S	10
190293	BL1615-1211S	11
190294	BL1615-1212S	12
190295	BL1615-1213S	13
190296	BL1615-1214S	14
190297	BL1615-1215S	15
190298	BL1615-1216S	16
190299	BL1615-1217S	17
190300	BL1615-1218S	18
190301	BL1615-1219S	19
190302	BL1615-1220S	20
190303	BL1615-1221S	21
190304	BL1615-1222S	22
190305	BL1615-1223S	23
190306	BL1615-1224S	24
190307	BL1615-1225S	25

ID	Part.No.	number of contacts
190308	BL1615-1226S	26
190309	BL1615-1227S	27
190310	BL1615-1228S	28
190311	BL1615-1229S	29
190312	BL1615-1230S	30
190313	BL1615-1231S	31
190314	BL1615-1232S	32
190315	BL1615-1233S	33
190316	BL1615-1234S	34
190317	BL1615-1235S	35
190318	BL1615-1236S	36
190319	BL1615-1237S	37
190320	BL1615-1238S	38
190321	BL1615-1239S	39
190322	BL1615-1240S	40
190323	BL1615-1241S	41
190324	BL1615-1242S	42
190325	BL1615-1243S	43
190326	BL1615-1244S	44
190327	BL1615-1245S	45
190328	BL1615-1246S	46
190329	BL1615-1247S	47
190330	BL1615-1248S	48
190331	BL1615-1249S	49
190332	BL1615-1250S	50

BL1615-12XXS series, open double row straight pin headers on PCB for mounting holes, pitch 1.00 mm, Board-to-Board connectors, pin headers and sockets for them > pitch 1.00 mm

PCB layout
