2199R05-XXXG series

pin headers double-row angle on PCB for mounting holes, pitch 1,27x1,27 mm

2199R05-XXXG series, pin headers double-row angle on PCB for mounting holes, pitch 1,27x1,27 mm, Board-to-Board connectors, pin headers and sockets for them > pitch 1,27x1,27 mm

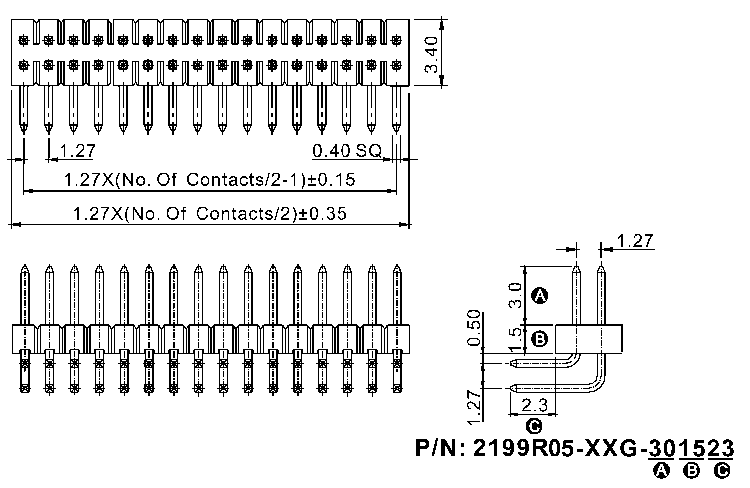

Drawing

2199	R05	-	XXX	G	-	301523
1	2		3	4		5

1) Series:
     2199
2) Insulator:
     R05: angular double row
3) Number of contacts (4...100):
     XXX
4) Contact plating:
     G: golg plating
     T: tin plating
5) Dimensions A, B, C in tenths of mm:
     301523: (standard) A=3,0 mm, B=1,5 mm, C=2,3 mm
     XXXXXX

Pin headers double-row angle on PCB for mounting holes of this series are made in the form of a comb 2x50 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 1 A AC/DC
Maximum voltage: 50 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -25...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
47072	2199R05-004G-301523	4
47073	2199R05-006G-301523	6
47074	2199R05-008G-301523	8
47075	2199R05-010G-301523	10
47076	2199R05-012G-301523	12
47077	2199R05-014G-301523	14
47078	2199R05-016G-301523	16
47079	2199R05-018G-301523	18
47080	2199R05-020G-301523	20
47081	2199R05-022G-301523	22
47082	2199R05-024G-301523	24
47083	2199R05-026G-301523	26
47084	2199R05-028G-301523	28
47085	2199R05-030G-301523	30
47086	2199R05-032G-301523	32
47087	2199R05-034G-301523	34
47088	2199R05-036G-301523	36
47089	2199R05-038G-301523	38
47090	2199R05-040G-301523	40
47091	2199R05-042G-301523	42
47092	2199R05-044G-301523	44
47093	2199R05-046G-301523	46
47094	2199R05-048G-301523	48
24099	2199R05-050G-301523	50
47095	2199R05-052G-301523	52

ID	Part.No.	number of contacts
47096	2199R05-054G-301523	54
47097	2199R05-056G-301523	56
47098	2199R05-058G-301523	58
47099	2199R05-060G-301523	60
47100	2199R05-062G-301523	62
47101	2199R05-064G-301523	64
47102	2199R05-066G-301523	66
47103	2199R05-068G-301523	68
47003	2199R05-070G-301523	70
47004	2199R05-072G-301523	72
47005	2199R05-074G-301523	74
47006	2199R05-076G-301523	76
47007	2199R05-078G-301523	78
47008	2199R05-080G-301523	80
82607	2199R05-082G-301523	82
82608	2199R05-084G-301523	84
82609	2199R05-086G-301523	86
82610	2199R05-088G-301523	88
82611	2199R05-090G-301523	90
82612	2199R05-092G-301523	92
82613	2199R05-094G-301523	94
82614	2199R05-096G-301523	96
82615	2199R05-098G-301523	98
82616	2199R05-100G-301523	100
