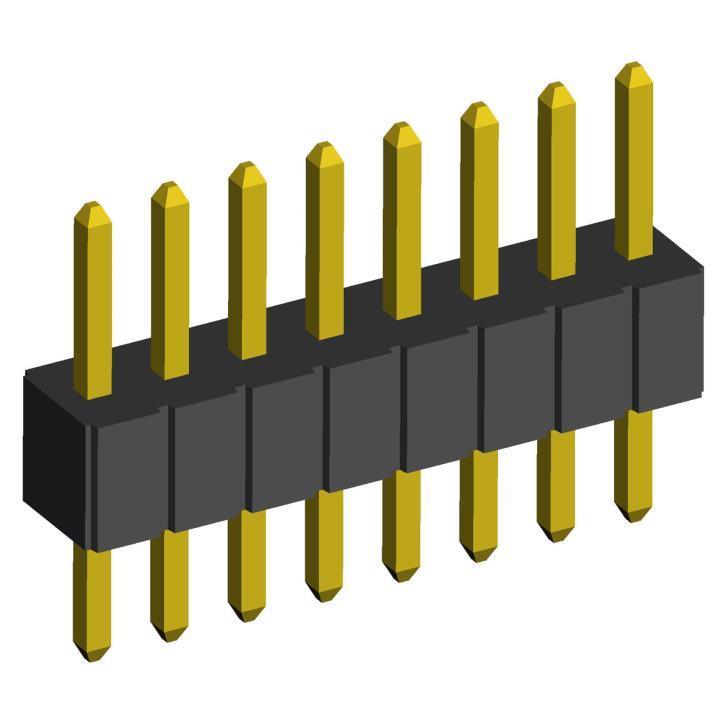

2199SA-XXG (PLL1.27) series

pin headers single row straight on PCB for mounting in holes, pitch 1,27 mm

2199SA-XXG (PLL1.27) series, pin headers single row straight on PCB for mounting in holes, pitch 1,27 mm, Board-to-Board connectors, pin headers and sockets for them > pitch 1,27 mm

Drawing

2199	SA	-	XX	G	-	302523
1	2		3	4		5

1) Series:
     2199
2) Insulator:
     SA: straight single row
3) Number of contacts (1...50):
     XX
4) Contact plating:
     G: golg plating
     T: tin plating
5) Dimensions A, B, C in tenths of mm:
     302523: (standard) A=3,0 mm, B=2,5 mm, C=2,3 mm
     XXXXXX

Pin headers single row straight on PCB for mounting in holes of this series are made in the form of a comb 1x50 pins. Then they can be cut on a special device on factory at the request of the customer for any number of contacts: 1, 2, 3... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 1 A AC/DC
Maximum voltage: 50 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -25...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
125087	2199SA-01G-301523 (PLL1.27-1)	1
67052	2199SA-02G-301523 (PLL1.27-2)	2
67053	2199SA-03G-301523 (PLL1.27-3)	3
67054	2199SA-04G-301523 (PLL1.27-4)	4
67055	2199SA-05G-301523 (PLL1.27-5)	5
73118	2199SA-05G-302526	5
67056	2199SA-06G-301523 (PLL1.27-6)	6
67057	2199SA-07G-301523 (PLL1.27-7)	7
133235	2199SA-08G-301020	8
67058	2199SA-08G-301523 (PLL1.27-8)	8
67059	2199SA-09G-301523 (PLL1.27-9)	9
67060	2199SA-10G-301523 (PLL1.27-10)	10
73119	2199SA-10G-302526	10
67061	2199SA-11G-301523 (PLL1.27-11)	11
67062	2199SA-12G-301523 (PLL1.27-12)	12
67063	2199SA-13G-301523 (PLL1.27-13)	13
133307	2199SA-14G-301020	14
67064	2199SA-14G-301523 (PLL1.27-14)	14
67065	2199SA-15G-301523 (PLL1.27-15)	15
67066	2199SA-16G-301523 (PLL1.27-16)	16
67067	2199SA-17G-301523 (PLL1.27-17)	17
67068	2199SA-18G-301523 (PLL1.27-18)	18
133308	2199SA-19G-301020	19
67069	2199SA-19G-301523 (PLL1.27-19)	19
133236	2199SA-20G-301020	20

ID	Part.No.	number of contacts
67070	2199SA-20G-301523 (PLL1.27-20)	20
67071	2199SA-21G-301523 (PLL1.27-21)	21
133309	2199SA-22G-301020	22
67072	2199SA-22G-301523 (PLL1.27-22)	22
67073	2199SA-23G-301523 (PLL1.27-23)	23
67074	2199SA-24G-301523 (PLL1.27-24)	24
67075	2199SA-25G-301523 (PLL1.27-25)	25
67076	2199SA-26G-301523 (PLL1.27-26)	26
67077	2199SA-27G-301523 (PLL1.27-27)	27
67078	2199SA-28G-301523 (PLL1.27-28)	28
67079	2199SA-29G-301523 (PLL1.27-29)	29
67080	2199SA-30G-301523 (PLL1.27-30)	30
67081	2199SA-31G-301523 (PLL1.27-31)	31
67082	2199SA-32G-301523 (PLL1.27-32)	32
67083	2199SA-33G-301523 (PLL1.27-33)	33
67084	2199SA-34G-301523 (PLL1.27-34)	34
67085	2199SA-35G-301523 (PLL1.27-35)	35
67086	2199SA-36G-301523 (PLL1.27-36)	36
67087	2199SA-37G-301523 (PLL1.27-37)	37
67088	2199SA-38G-301523 (PLL1.27-38)	38
67089	2199SA-39G-301523 (PLL1.27-39)	39
67090	2199SA-40G-301523 (PLL1.27-40)	40
67091	2199SA-41G-301523 (PLL1.27-41)	41
67092	2199SA-42G-301523 (PLL1.27-42)	42
67093	2199SA-43G-301523 (PLL1.27-43)	43
67094	2199SA-44G-301523 (PLL1.27-44)	44
67095	2199SA-45G-301523 (PLL1.27-45)	45
67096	2199SA-46G-301523 (PLL1.27-46)	46
67097	2199SA-47G-301523 (PLL1.27-47)	47
67098	2199SA-48G-301523 (PLL1.27-48)	48
67099	2199SA-49G-301523 (PLL1.27-49)	49
67100	2199SA-50G-301523 (PLL1.27-50)	50
130229	2199SA-50G-401523 (PLL1.27-50)	50
