2200SB-XXXG-SM-23-PCG series

double row straight sockets on PCB for surface (SMD) mounting with guides and capture, pitch 1,27x1,27 mm

2200SB-XXXG-SM-23-PCG series, double row straight sockets on PCB for surface (SMD) mounting with guides and capture, pitch 1,27x1,27 mm, Board-to-Board connectors, pin headers and sockets for them > pitch 1,27x1,27 mm

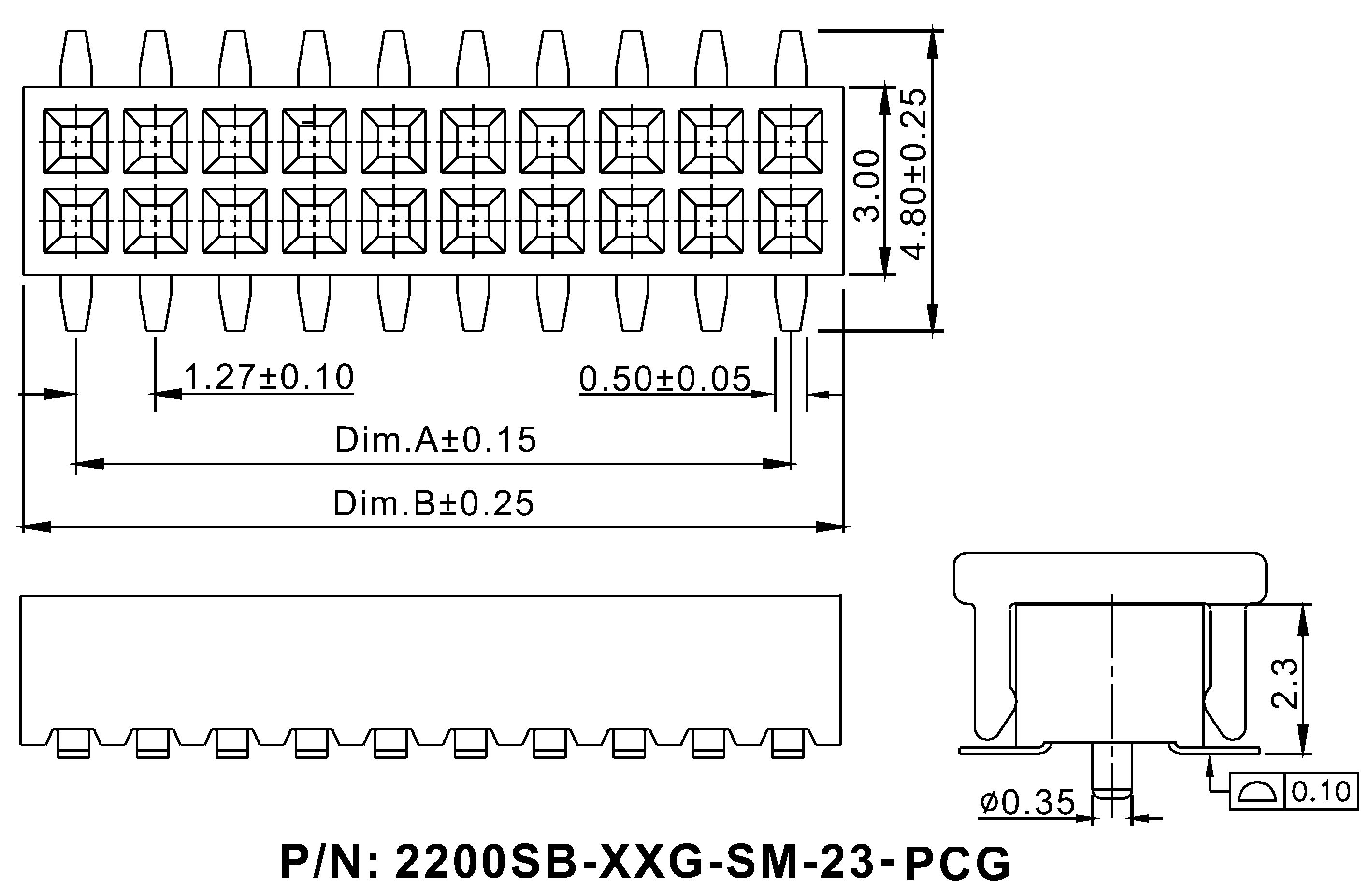

Drawing

2200	SB	-	XXX	G	-	SM	-	23	-	PCG
1	2		3	4		5		6		7

1) Series:
     2200
2) Insulator:
     SB: straight double row
3) Number of contacts:
     XXX: 4...100
4) Contact plating:
     G: golg plating
     T: tin plating
5) Type of installation:
     SM: for surface mounting (SMD)
6) Insulator height in tenths of mm:
     23: 2.3 mm
7) Guides to PCB � Cover capture with automatic installation
     PCG

Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts.

Electric characteristic:
Maximum current: 1 A AC/DC
Maximum voltage: 50 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -25...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
67793	2200SB-004G-SM-23-PCG	4
67794	2200SB-006G-SM-23-PCG	6
67795	2200SB-008G-SM-23-PCG	8
67796	2200SB-010G-SM-23-PCG	10
67797	2200SB-012G-SM-23-PCG	12
67798	2200SB-014G-SM-23-PCG	14
67799	2200SB-016G-SM-23-PCG	16
67800	2200SB-018G-SM-23-PCG	18
67801	2200SB-020G-SM-23-PCG	20
67802	2200SB-022G-SM-23-PCG	22
67803	2200SB-024G-SM-23-PCG	24
67804	2200SB-026G-SM-23-PCG	26
67805	2200SB-028G-SM-23-PCG	28
67806	2200SB-030G-SM-23-PCG	30
67807	2200SB-032G-SM-23-PCG	32
67808	2200SB-034G-SM-23-PCG	34
67809	2200SB-036G-SM-23-PCG	36
67810	2200SB-038G-SM-23-PCG	38
67811	2200SB-040G-SM-23-PCG	40
67812	2200SB-042G-SM-23-PCG	42
67813	2200SB-044G-SM-23-PCG	44
67814	2200SB-046G-SM-23-PCG	46
67815	2200SB-048G-SM-23-PCG	48
67816	2200SB-050G-SM-23-PCG	50
67817	2200SB-052G-SM-23-PCG	52

ID	Part.No.	number of contacts
67818	2200SB-054G-SM-23-PCG	54
67819	2200SB-056G-SM-23-PCG	56
67820	2200SB-058G-SM-23-PCG	58
67821	2200SB-060G-SM-23-PCG	60
67822	2200SB-062G-SM-23-PCG	62
67823	2200SB-064G-SM-23-PCG	64
67824	2200SB-066G-SM-23-PCG	66
67825	2200SB-068G-SM-23-PCG	68
67826	2200SB-070G-SM-23-PCG	70
67827	2200SB-072G-SM-23-PCG	72
67828	2200SB-074G-SM-23-PCG	74
67829	2200SB-076G-SM-23-PCG	76
67830	2200SB-078G-SM-23-PCG	78
67831	2200SB-080G-SM-23-PCG	80
82788	2200SB-082G-SM-23-PCG	82
82789	2200SB-084G-SM-23-PCG	84
82790	2200SB-086G-SM-23-PCG	86
82791	2200SB-088G-SM-23-PCG	88
82792	2200SB-090G-SM-23-PCG	90
82793	2200SB-092G-SM-23-PCG	92
82794	2200SB-094G-SM-23-PCG	94
82795	2200SB-096G-SM-23-PCG	96
82796	2200SB-098G-SM-23-PCG	98
82797	2200SB-100G-SM-23-PCG	100

PCB layout
