2200SB-XXXG-SM-36-PCP series

double row straight sockets on PCB for surface (SMD) mounting with reverse input and capture, pitch 1,27x1,27 mm

2200SB-XXXG-SM-36-PCP series, double row straight sockets on PCB for surface (SMD) mounting with reverse input and capture, pitch 1,27x1,27 mm, Board-to-Board connectors, pin headers and sockets for them > pitch 1,27x1,27 mm

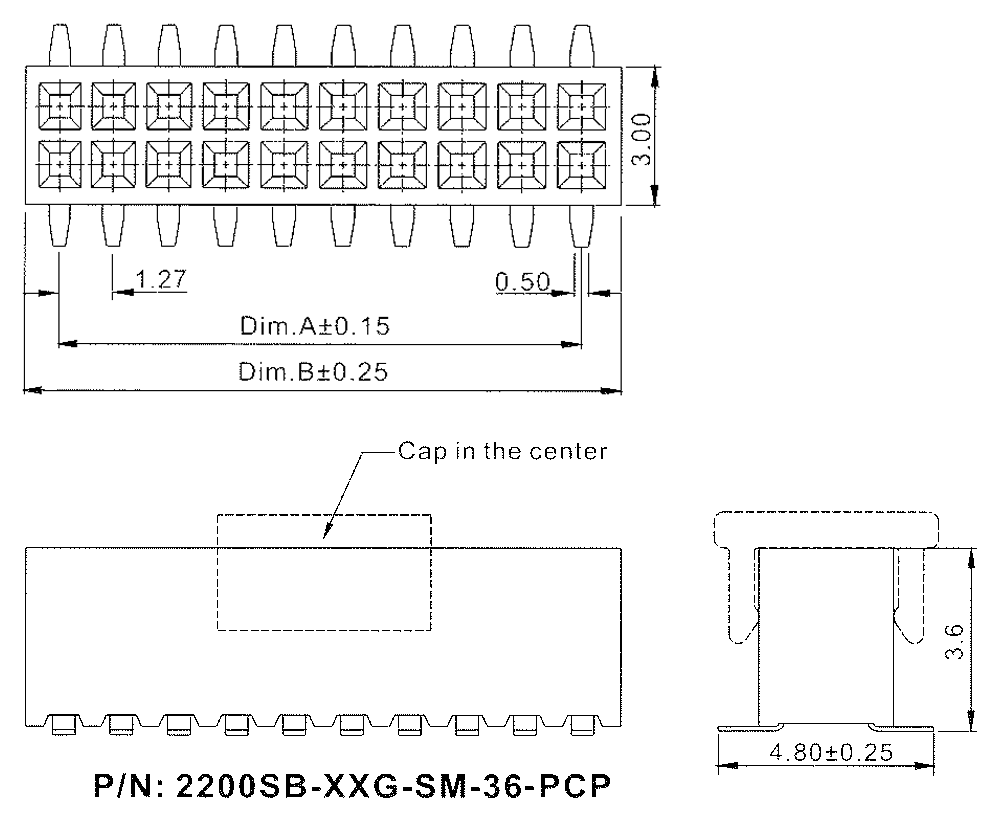

Drawing

2200	SB	-	XXX	G	-	SM	-	36	-	PCP
1	2		3	4		5		6		7

1) Series:
     2200
2) Insulator:
     SB: straight double row
3) Number of contacts:
     XXX: 4...100
4) Contact plating:
     G: golg plating
     T: tin plating
5) Type of installation:
     SM: for surface mounting (SMD)
6) Insulator height in tenths of mm:
     36: 3.6 mm
7) Cover capture with automatic installation:
     PCP

Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts.

Electric characteristic:
Maximum current: 1 A AC/DC
Maximum voltage: 50 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -25...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
68108	2200SB-004G-SM-36-PCP	4
68109	2200SB-006G-SM-36-PCP	6
68110	2200SB-008G-SM-36-PCP	8
68111	2200SB-010G-SM-36-PCP	10
68112	2200SB-012G-SM-36-PCP	12
68113	2200SB-014G-SM-36-PCP	14
68114	2200SB-016G-SM-36-PCP	16
68115	2200SB-018G-SM-36-PCP	18
68116	2200SB-020G-SM-36-PCP	20
68117	2200SB-022G-SM-36-PCP	22
68118	2200SB-024G-SM-36-PCP	24
68119	2200SB-026G-SM-36-PCP	26
68120	2200SB-028G-SM-36-PCP	28
68121	2200SB-030G-SM-36-PCP	30
68122	2200SB-032G-SM-36-PCP	32
68123	2200SB-034G-SM-36-PCP	34
68124	2200SB-036G-SM-36-PCP	36
68125	2200SB-038G-SM-36-PCP	38
68126	2200SB-040G-SM-36-PCP	40
68127	2200SB-042G-SM-36-PCP	42
68128	2200SB-044G-SM-36-PCP	44
68129	2200SB-046G-SM-36-PCP	46
68130	2200SB-048G-SM-36-PCP	48
68131	2200SB-050G-SM-36-PCP	50
68132	2200SB-052G-SM-36-PCP	52

ID	Part.No.	number of contacts
68133	2200SB-054G-SM-36-PCP	54
68134	2200SB-056G-SM-36-PCP	56
68135	2200SB-058G-SM-36-PCP	58
68136	2200SB-060G-SM-36-PCP	60
68137	2200SB-062G-SM-36-PCP	62
68138	2200SB-064G-SM-36-PCP	64
68139	2200SB-066G-SM-36-PCP	66
68140	2200SB-068G-SM-36-PCP	68
68141	2200SB-070G-SM-36-PCP	70
68142	2200SB-072G-SM-36-PCP	72
68143	2200SB-074G-SM-36-PCP	74
68144	2200SB-076G-SM-36-PCP	76
68145	2200SB-078G-SM-36-PCP	78
68146	2200SB-080G-SM-36-PCP	80
82858	2200SB-082G-SM-36-PCP	82
82859	2200SB-084G-SM-36-PCP	84
82860	2200SB-086G-SM-36-PCP	86
82861	2200SB-088G-SM-36-PCP	88
82862	2200SB-090G-SM-36-PCP	90
82863	2200SB-092G-SM-36-PCP	92
82864	2200SB-094G-SM-36-PCP	94
82865	2200SB-096G-SM-36-PCP	96
82866	2200SB-098G-SM-36-PCP	98
82867	2200SB-100G-SM-36-PCP	100

PCB layout
