| Connectors >> Board-to-Board connectors, pin headers and sockets for them >> pitch 1,27 mm |
2200SA-XXG-44 series |
single row straight sockets on PCB for mounting in holes, pitch 1,27 mm
|

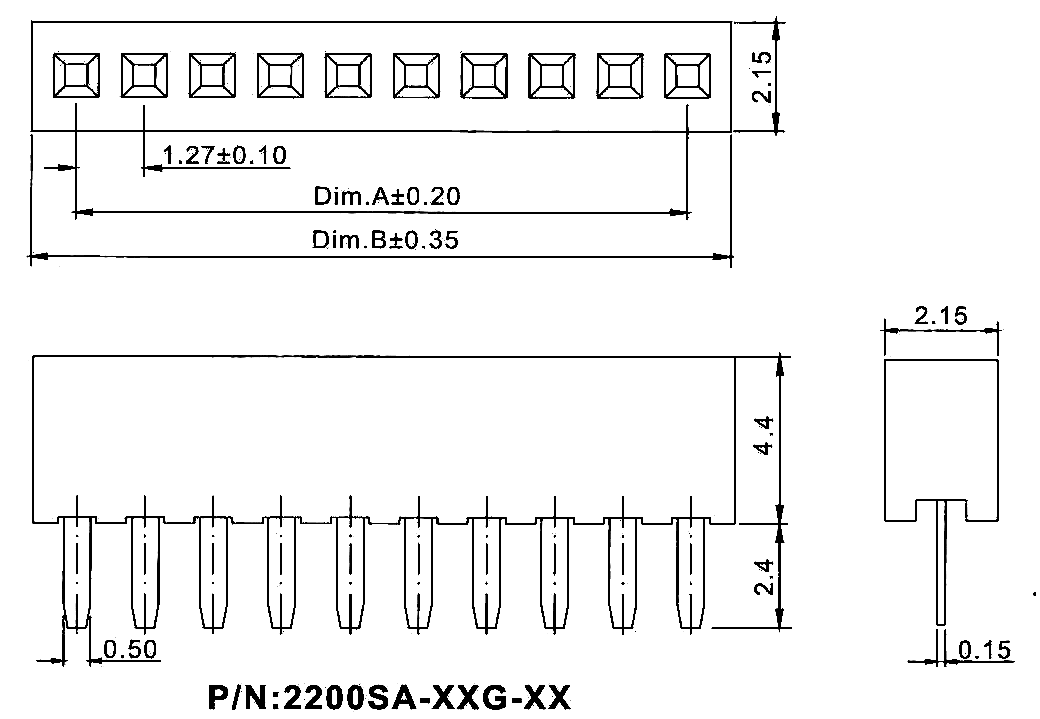

Drawing
|
| 2200 |
SA |
- |
XX |
G |
- |
XX |
| 1 |
2 |
|
3 |
4 |
|
5 |
|
|
1) Series:
2200
2) Insulator:
SA: straight single row
3) Number of contacts (2...40):
XX
4) Contact plating:
G: golg plating
T: tin plating
5) Insulator height D in tenths of mm:
21: 2,1 mm
34: 3,4 mm
44: 4,4 mm
85: 8,5 mm
|
|
Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts. |
Electric characteristic:
Maximum current: 1 A AC/DC
Maximum voltage: 50 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -25...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 67250 |
2200SA-02G-44 |
2 |
| 67251 |
2200SA-03G-44 |
3 |
| 67252 |
2200SA-04G-44 |
4 |
| 67253 |
2200SA-05G-44 |
5 |
| 67254 |
2200SA-06G-44 |
6 |
| 67255 |
2200SA-07G-44 |
7 |
| 67256 |
2200SA-08G-44 |
8 |
| 67257 |
2200SA-09G-44 |
9 |
| 67258 |
2200SA-10G-44 |
10 |
| 67259 |
2200SA-11G-44 |
11 |
| 67260 |
2200SA-12G-44 |
12 |
| 67261 |
2200SA-13G-44 |
13 |
| 67262 |
2200SA-14G-44 |
14 |
| 67263 |
2200SA-15G-44 |
15 |
| 67264 |
2200SA-16G-44 |
16 |
| 67265 |
2200SA-17G-44 |
17 |
| 67266 |
2200SA-18G-44 |
18 |
| 67267 |
2200SA-19G-44 |
19 |
| 67268 |
2200SA-20G-44 |
20 |
| 67269 |
2200SA-21G-44 |
21 |
| 67270 |
2200SA-22G-44 |
22 |
| 67271 |
2200SA-23G-44 |
23 |
| 67272 |
2200SA-24G-44 |
24 |
| 67273 |
2200SA-25G-44 |
25 |
| 67274 |
2200SA-26G-44 |
26 |
|
|
| 67275 |
2200SA-27G-44 |
27 |
| 67276 |
2200SA-28G-44 |
28 |
| 67277 |
2200SA-29G-44 |
29 |
| 67278 |
2200SA-30G-44 |
30 |
| 67279 |
2200SA-31G-44 |
31 |
| 67280 |
2200SA-32G-44 |
32 |
| 67281 |
2200SA-33G-44 |
33 |
| 67282 |
2200SA-34G-44 |
34 |
| 67283 |
2200SA-35G-44 |
35 |
| 67284 |
2200SA-36G-44 |
36 |
| 67285 |
2200SA-37G-44 |
37 |
| 67286 |
2200SA-38G-44 |
38 |
| 67287 |
2200SA-39G-44 |
39 |
| 67288 |
2200SA-40G-44 |
40 |
| 82170 |
2200SA-41G-44 |
41 |
| 82209 |
2200SA-42G-44 |
42 |
| 82248 |
2200SA-43G-44 |
43 |
| 82093 |
2200SA-44G-44 |
44 |
| 82132 |
2200SA-45G-44 |
45 |
| 82171 |
2200SA-46G-44 |
46 |
| 82210 |
2200SA-47G-44 |
47 |
| 82249 |
2200SA-48G-44 |
48 |
| 82094 |
2200SA-49G-44 |
49 |
| 82133 |
2200SA-50G-44 |
50 |
|
PCB layout
|
|
|
