| Connectors >> Board-to-Board connectors, pin headers and sockets for them >> pitch 1,27 mm |
2200SA-XXG-SM2-B1-PCP series |
single row straight sockets with capture for surface (SMD) mounting on PCB, pitch 1,27 mm
|

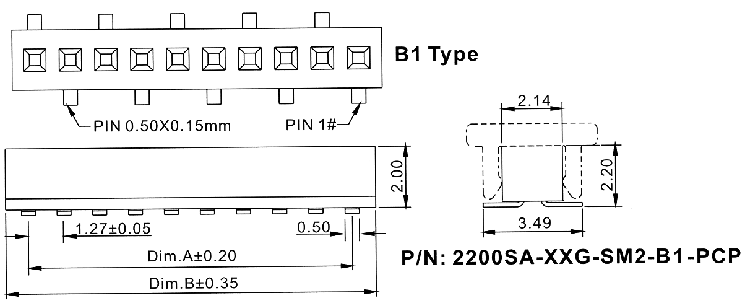

Drawing
|
| 2200 |
SA |
- |
XX |
G |
- |
SM |
X |
- |
BX |
- |
PCP |
| 1 |
2 |
|
3 |
4 |
|
5 |
6 |
|
7 |
|
8 |
|
|
1) Series:
2200
2) Insulator:
SA: straight single row
3) Number of contacts (2...40):
XX
4) Contact plating:
G: golg plating
T: tin plating
5) For surface mounting (SMD):
SM
6) Insulator height:
1: 4,5 mm
2: 2,2 mm
3: 3,6 mm
7) Mirror arrangement of contacts:
B1
B2
8) Cover capture with automatic installation:
PCP
|
|
Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts. |
Electric characteristic:
Maximum current: 1 A AC/DC
Maximum voltage: 50 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -25...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 80461 |
2200SA-02G-SM2-B1-PCP |
2 |
| 80561 |
2200SA-03G-SM2-B1-PCP |
3 |
| 80462 |
2200SA-04G-SM2-B1-PCP |
4 |
| 80463 |
2200SA-05G-SM2-B1-PCP |
5 |
| 80464 |
2200SA-06G-SM2-B1-PCP |
6 |
| 80465 |
2200SA-07G-SM2-B1-PCP |
7 |
| 80466 |
2200SA-08G-SM2-B1-PCP |
8 |
| 80467 |
2200SA-09G-SM2-B1-PCP |
9 |
| 80469 |
2200SA-10G-SM2-B1-PCP |
10 |
| 80471 |
2200SA-11G-SM2-B1-PCP |
11 |
| 80473 |
2200SA-12G-SM2-B1-PCP |
12 |
| 80474 |
2200SA-13G-SM2-B1-PCP |
13 |
| 80475 |
2200SA-14G-SM2-B1-PCP |
14 |
| 80476 |
2200SA-15G-SM2-B1-PCP |
15 |
| 80477 |
2200SA-16G-SM2-B1-PCP |
16 |
| 80479 |
2200SA-17G-SM2-B1-PCP |
17 |
| 80579 |
2200SA-18G-SM2-B1-PCP |
18 |
| 80481 |
2200SA-19G-SM2-B1-PCP |
19 |
| 80484 |
2200SA-20G-SM2-B1-PCP |
20 |
| 82420 |
2200SA-21G-SM2-B1-PCP |
21 |
| 82421 |
2200SA-22G-SM2-B1-PCP |
22 |
| 82422 |
2200SA-23G-SM2-B1-PCP |
23 |
| 82423 |
2200SA-24G-SM2-B1-PCP |
24 |
| 82424 |
2200SA-25G-SM2-B1-PCP |
25 |
| 82425 |
2200SA-26G-SM2-B1-PCP |
26 |
|
|
| 82426 |
2200SA-27G-SM2-B1-PCP |
27 |
| 82427 |
2200SA-28G-SM2-B1-PCP |
28 |
| 82428 |
2200SA-29G-SM2-B1-PCP |
29 |
| 82429 |
2200SA-30G-SM2-B1-PCP |
30 |
| 82430 |
2200SA-31G-SM2-B1-PCP |
31 |
| 82431 |
2200SA-32G-SM2-B1-PCP |
32 |
| 82432 |
2200SA-33G-SM2-B1-PCP |
33 |
| 82433 |
2200SA-34G-SM2-B1-PCP |
34 |
| 82434 |
2200SA-35G-SM2-B1-PCP |
35 |
| 82435 |
2200SA-36G-SM2-B1-PCP |
36 |
| 82436 |
2200SA-37G-SM2-B1-PCP |
37 |
| 82437 |
2200SA-38G-SM2-B1-PCP |
38 |
| 82438 |
2200SA-39G-SM2-B1-PCP |
39 |
| 82439 |
2200SA-40G-SM2-B1-PCP |
40 |
| 82440 |
2200SA-41G-SM2-B1-PCP |
41 |
| 82441 |
2200SA-42G-SM2-B1-PCP |
42 |
| 82442 |
2200SA-43G-SM2-B1-PCP |
43 |
| 82443 |
2200SA-44G-SM2-B1-PCP |
44 |
| 82444 |
2200SA-45G-SM2-B1-PCP |
45 |
| 82445 |
2200SA-46G-SM2-B1-PCP |
46 |
| 82446 |
2200SA-47G-SM2-B1-PCP |
47 |
| 82447 |
2200SA-48G-SM2-B1-PCP |
48 |
| 82448 |
2200SA-49G-SM2-B1-PCP |
49 |
| 82449 |
2200SA-50G-SM2-B1-PCP |
50 |
|
PCB layout
|
|
|
