| Connectors >> Board-to-Board connectors, pin headers and sockets for them >> pitch 1,27x1,27 mm |
2200SB-XXXG-A3 series |
double row straight sockets on PCB for mounting in holes, pitch 1,27x1,27 mm
|

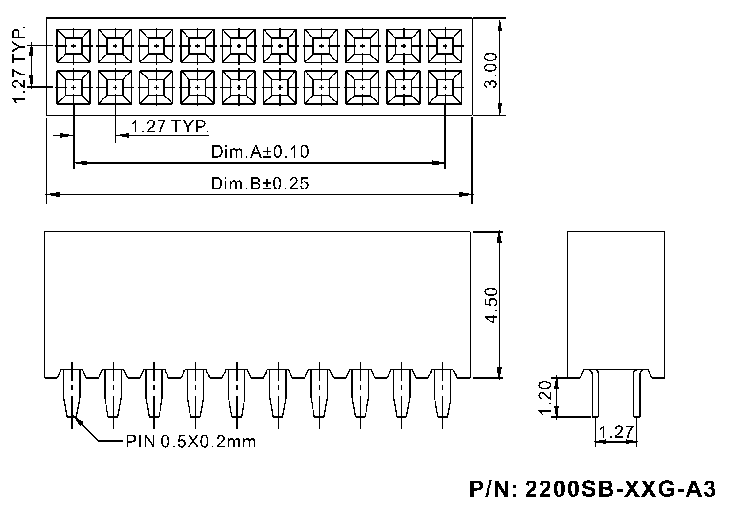

Drawing
|
| 2200 |
SB |
- |
XX |
G |
- |
AX |
| 1 |
2 |
|
3 |
4 |
|
5 |
|
|
1) Series:
2200
2) Insulator:
SB: straight double row
3) Number of contacts (4...80):
XX
4) Contact plating:
G: golg plating
T: tin plating
5) Pin length:
A1: 2,20 mm
A2: 1,75 mm
A3: 1,20 mm
|
|
Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts. |
Electric characteristic:
Maximum current: 1 A AC/DC
Maximum voltage: 50 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -25...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 67754 |
2200SB-004G-A3 |
4 |
| 67755 |
2200SB-006G-A3 |
6 |
| 67756 |
2200SB-008G-A3 |
8 |
| 67757 |
2200SB-010G-A3 |
10 |
| 67758 |
2200SB-012G-A3 |
12 |
| 67759 |
2200SB-014G-A3 |
14 |
| 67760 |
2200SB-016G-A3 |
16 |
| 67761 |
2200SB-018G-A3 |
18 |
| 67762 |
2200SB-020G-A3 |
20 |
| 67763 |
2200SB-022G-A3 |
22 |
| 67764 |
2200SB-024G-A3 |
24 |
| 67765 |
2200SB-026G-A3 |
26 |
| 67766 |
2200SB-028G-A3 |
28 |
| 67767 |
2200SB-030G-A3 |
30 |
| 67768 |
2200SB-032G-A3 |
32 |
| 67769 |
2200SB-034G-A3 |
34 |
| 67770 |
2200SB-036G-A3 |
36 |
| 67771 |
2200SB-038G-A3 |
38 |
| 67772 |
2200SB-040G-A3 |
40 |
| 67773 |
2200SB-042G-A3 |
42 |
| 67774 |
2200SB-044G-A3 |
44 |
| 67775 |
2200SB-046G-A3 |
46 |
| 67776 |
2200SB-048G-A3 |
48 |
| 67777 |
2200SB-050G-A3 |
50 |
| 67778 |
2200SB-052G-A3 |
52 |
|
|
| 67779 |
2200SB-054G-A3 |
54 |
| 67780 |
2200SB-056G-A3 |
56 |
| 67781 |
2200SB-058G-A3 |
58 |
| 67782 |
2200SB-060G-A3 |
60 |
| 67783 |
2200SB-062G-A3 |
62 |
| 67784 |
2200SB-064G-A3 |
64 |
| 67785 |
2200SB-066G-A3 |
66 |
| 67786 |
2200SB-068G-A3 |
68 |
| 67787 |
2200SB-070G-A3 |
70 |
| 67788 |
2200SB-072G-A3 |
72 |
| 67789 |
2200SB-074G-A3 |
74 |
| 67790 |
2200SB-076G-A3 |
76 |
| 67791 |
2200SB-078G-A3 |
78 |
| 67792 |
2200SB-080G-A3 |
80 |
| 82748 |
2200SB-082G-A3 |
82 |
| 82749 |
2200SB-084G-A3 |
84 |
| 82750 |
2200SB-086G-A3 |
86 |
| 82751 |
2200SB-088G-A3 |
88 |
| 82752 |
2200SB-090G-A3 |
90 |
| 82753 |
2200SB-092G-A3 |
92 |
| 82754 |
2200SB-094G-A3 |
94 |
| 82755 |
2200SB-096G-A3 |
96 |
| 82756 |
2200SB-098G-A3 |
98 |
| 82757 |
2200SB-100G-A3 |
100 |
|
PCB layout
|
|
|
