| Connectors >> Board-to-Board connectors, pin headers and sockets for them >> pitch 1,27 mm |
BL14065-11xxR-2.5 series |
pin headers open single row angle on PCB for mounting in holes, pitch 1,27 mm
|

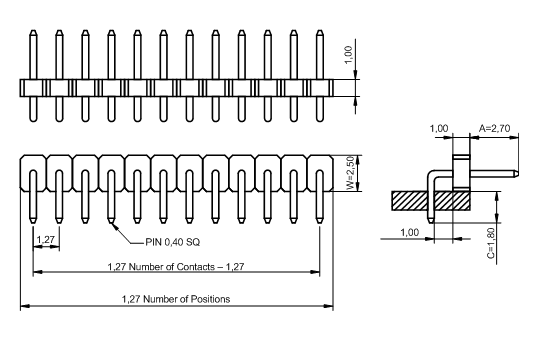

Drawing
|
| BL1420 |
- |
1 |
1 |
XX |
R |
2.5 |
| 1 |
|
2 |
3 |
4 |
5 |
6 |
|
|
1) Series:
BL1420: H=2,0 mm
2) Insulator:
1: one
3) Number of rows:
1: single-row
4) Number of contacts in a row (1x50):
01 ... 50
5) Type:
R: angle
6) Width of insulator:
2.5: 2,5 mm
|
|
Pin headers open single row angle on PCB for mounting in holes of this series are made in the form of a comb 1x50 pins. Then they can be cut on a special device on factory at the request of the customer for any number of contacts: 1, 2, 3... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine. |
Electric characteristic:
Maximum current: 1 A AC/DC
Maximum voltage: 50 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 203454 |
BL14065-1101R-2.5 |
1 |
| 203455 |
BL14065-1102R-2.5 |
2 |
| 203456 |
BL14065-1103R-2.5 |
3 |
| 203457 |
BL14065-1104R-2.5 |
4 |
| 203458 |
BL14065-1105R-2.5 |
5 |
| 203459 |
BL14065-1106R-2.5 |
6 |
| 203460 |
BL14065-1107R-2.5 |
7 |
| 203461 |
BL14065-1108R-2.5 |
8 |
| 203462 |
BL14065-1109R-2.5 |
9 |
| 203463 |
BL14065-1110R-2.5 |
10 |
| 203464 |
BL14065-1111R-2.5 |
11 |
| 203465 |
BL14065-1112R-2.5 |
12 |
| 203466 |
BL14065-1113R-2.5 |
13 |
| 203467 |
BL14065-1114R-2.5 |
14 |
| 203468 |
BL14065-1115R-2.5 |
15 |
| 203469 |
BL14065-1116R-2.5 |
16 |
| 203470 |
BL14065-1117R-2.5 |
17 |
| 203471 |
BL14065-1118R-2.5 |
18 |
| 203472 |
BL14065-1119R-2.5 |
19 |
| 203473 |
BL14065-1120R-2.5 |
20 |
| 203474 |
BL14065-1121R-2.5 |
21 |
| 203475 |
BL14065-1122R-2.5 |
22 |
| 203476 |
BL14065-1123R-2.5 |
23 |
| 203477 |
BL14065-1124R-2.5 |
24 |
| 203478 |
BL14065-1125R-2.5 |
25 |
|
|
| 203479 |
BL14065-1126R-2.5 |
26 |
| 203480 |
BL14065-1127R-2.5 |
27 |
| 203481 |
BL14065-1128R-2.5 |
28 |
| 203482 |
BL14065-1129R-2.5 |
29 |
| 203483 |
BL14065-1130R-2.5 |
30 |
| 203484 |
BL14065-1131R-2.5 |
31 |
| 203485 |
BL14065-1132R-2.5 |
32 |
| 203486 |
BL14065-1133R-2.5 |
33 |
| 203487 |
BL14065-1134R-2.5 |
34 |
| 203488 |
BL14065-1135R-2.5 |
35 |
| 203489 |
BL14065-1136R-2.5 |
36 |
| 203490 |
BL14065-1137R-2.5 |
37 |
| 203491 |
BL14065-1138R-2.5 |
38 |
| 203492 |
BL14065-1139R-2.5 |
39 |
| 203493 |
BL14065-1140R-2.5 |
40 |
| 203494 |
BL14065-1141R-2.5 |
41 |
| 203495 |
BL14065-1142R-2.5 |
42 |
| 203496 |
BL14065-1143R-2.5 |
43 |
| 203497 |
BL14065-1144R-2.5 |
44 |
| 203498 |
BL14065-1145R-2.5 |
45 |
| 203499 |
BL14065-1146R-2.5 |
46 |
| 203500 |
BL14065-1147R-2.5 |
47 |
| 203501 |
BL14065-1148R-2.5 |
48 |
| 203502 |
BL14065-1149R-2.5 |
49 |
| 203503 |
BL14065-1150R-2.5 |
50 |
|
PCB layout
|
|
|
