1999SDI-XXXG-3A series

four-row sockets straight to the Board for mounting holes, pitch 2,0x2,0 mm

1999SDI-XXXG-3A series, four-row sockets straight to the Board for mounting holes, pitch 2,0x2,0 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,0x2,0 mm

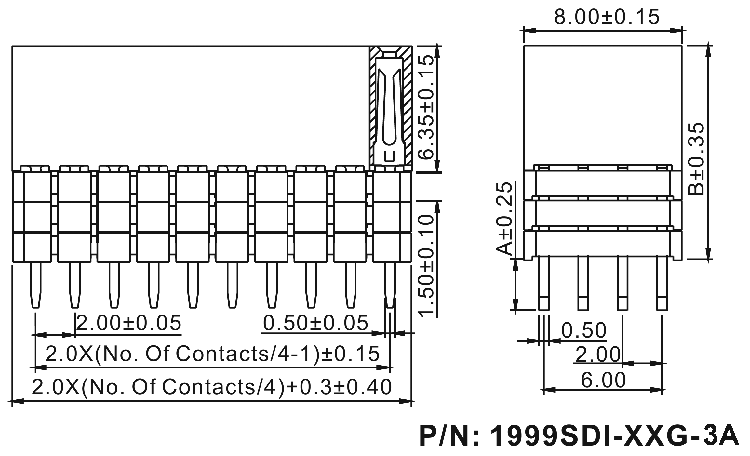

Drawing

1999	SDI	-	008	G	-	3A
1	2		3	4		5

1) Series:
     1999
2) Insulator:
     SDI: straight with double insulator
3) number of pins (8...160):
     008: 8 pins
     012: 12 pins
     xxx: ...
     160: 160 pins
4) Contact coverage:
     G: gold plating
5) Insulator height code B and pin lengths A ( mm):
     1A: A=2,3, B=7,85
     3A: A=2,3, B=10,85
     5A: A=2,3, B=13,85
     2B: A=3,8, B=9,35
     4B: A=3,8, B=12,35

Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts.

Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
69907	1999SDI-008G-3A	8
69908	1999SDI-012G-3A	12
69909	1999SDI-016G-3A	16
69910	1999SDI-020G-3A	20
69911	1999SDI-024G-3A	24
69912	1999SDI-028G-3A	28
69913	1999SDI-032G-3A	32
69914	1999SDI-036G-3A	36
69915	1999SDI-040G-3A	40
69916	1999SDI-044G-3A	44
69917	1999SDI-048G-3A	48
69918	1999SDI-052G-3A	52
69919	1999SDI-056G-3A	56
69920	1999SDI-060G-3A	60
69921	1999SDI-064G-3A	64
69922	1999SDI-068G-3A	68
69923	1999SDI-072G-3A	72
69924	1999SDI-076G-3A	76
69925	1999SDI-080G-3A	80
69926	1999SDI-084G-3A	84

ID	Part.No.	number of contacts
69927	1999SDI-088G-3A	88
69928	1999SDI-092G-3A	92
69929	1999SDI-096G-3A	96
69930	1999SDI-100G-3A	100
69931	1999SDI-104G-3A	104
69932	1999SDI-108G-3A	108
69933	1999SDI-112G-3A	112
69934	1999SDI-116G-3A	116
69935	1999SDI-120G-3A	120
69936	1999SDI-124G-3A	124
69937	1999SDI-128G-3A	128
69938	1999SDI-132G-3A	132
69939	1999SDI-136G-3A	136
69940	1999SDI-140G-3A	140
69941	1999SDI-144G-3A	144
69942	1999SDI-148G-3A	148
69943	1999SDI-152G-3A	152
69944	1999SDI-156G-3A	156
69945	1999SDI-160G-3A	160
