Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0x2,0 mm

2207SDI-XXG-2B series

straight double-row sockets with increased insulator on the Board for mounting in holes, pitch 2,0x2,0 mm

2207SDI-XXG-2B series, straight double-row sockets with increased insulator on the Board for mounting in holes, pitch 2,0x2,0 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,0x2,0 mm

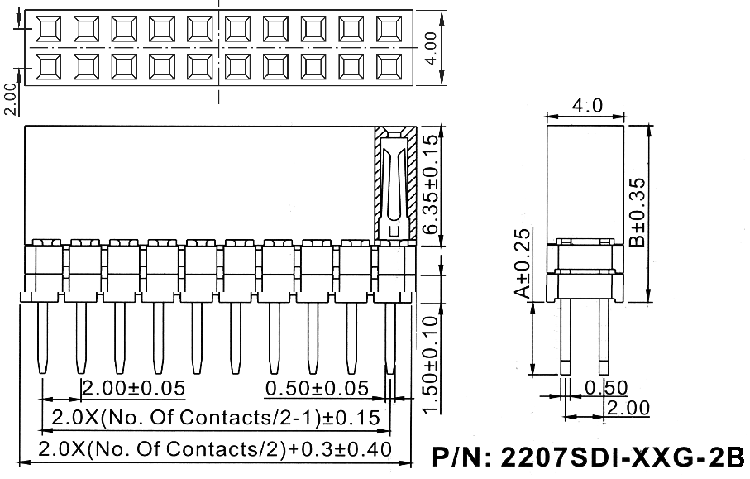

Drawing
2207SDI-XXG-2B series, straight double-row sockets with increased insulator on the Board for mounting in holes, pitch 2,0x2,0 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,0x2,0 mm

2207 SDI - 04 G - 2B
1 2   3 4   5

1) Series:
     2207
2) Insulator:
     SDI: straight with double insulator
3) number of pins (4...80):
     04: 4 pin (padded with zeros in front if less than 10 pins, i.e.: 04, ... 08)
     06: 6 pins
     xx: ...
     80: 80 pins
4) Contact coverage:
     G: gold plating
5) Insulator height code B and pin lengths A ( mm):
     1A: A=2,3, B=7,85
     3A: A=2,3, B=10,85
     5A: A=2,3, B=13,85
     2B: A=3,8, B=9,35
     4B: A=3,8, B=12,35

Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts.

Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout


ID Part.No. number of
contacts
70414 2207SDI-04G-2B 4
70415 2207SDI-06G-2B 6
70416 2207SDI-08G-2B 8
70417 2207SDI-10G-2B 10
70418 2207SDI-12G-2B 12
70419 2207SDI-14G-2B 14
70420 2207SDI-16G-2B 16
70421 2207SDI-18G-2B 18
70422 2207SDI-20G-2B 20
70423 2207SDI-22G-2B 22
70424 2207SDI-24G-2B 24
70425 2207SDI-26G-2B 26
70426 2207SDI-28G-2B 28
70427 2207SDI-30G-2B 30
70428 2207SDI-32G-2B 32
70429 2207SDI-34G-2B 34
70430 2207SDI-36G-2B 36
70431 2207SDI-38G-2B 38
70432 2207SDI-40G-2B 40
70433 2207SDI-42G-2B 42

ID Part.No. number of
contacts
70434 2207SDI-44G-2B 44
70435 2207SDI-46G-2B 46
70436 2207SDI-48G-2B 48
70437 2207SDI-50G-2B 50
70438 2207SDI-52G-2B 52
70439 2207SDI-54G-2B 54
70440 2207SDI-56G-2B 56
70441 2207SDI-58G-2B 58
70442 2207SDI-60G-2B 60
70443 2207SDI-62G-2B 62
70444 2207SDI-64G-2B 64
70445 2207SDI-66G-2B 66
70446 2207SDI-68G-2B 68
70447 2207SDI-70G-2B 70
70448 2207SDI-72G-2B 72
70449 2207SDI-74G-2B 74
70450 2207SDI-76G-2B 76
70451 2207SDI-78G-2B 78
70452 2207SDI-80G-2B 80

2207SDI-XXG-2B series, straight double-row sockets with increased insulator on the Board for mounting in holes, pitch 2,0x2,0 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,0x2,0 mm

PCB layout
