Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0x2,0 mm

2203SDI-XXXG-935 series

straight three-row sockets with increased insulator on the Board for mounting in holes, pitch 2,0x2,0 mm

2203SDI-XXXG-935 series, straight three-row sockets with increased insulator on the Board for mounting in holes, pitch 2,0x2,0 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,0x2,0 mm

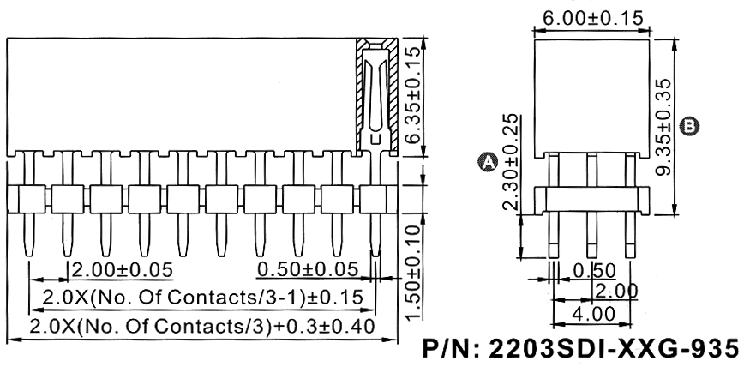

Drawing
2203SDI-XXXG-935 series, straight three-row sockets with increased insulator on the Board for mounting in holes, pitch 2,0x2,0 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,0x2,0 mm

2203 SDI - 006 G - 935
1 2   3 4   5

1) Series:
     2203
2) Insulator:
     SDI: straight with double insulator
3) number of pins (6...120):
     006: 6 pins
     009: 9 pins
     xxx: ...
     120: 120 pins
4) Contact coverage:
     G: gold plating
5) Insulator height in hundredths of mm:
     935: 9,35 mm

Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts.

Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout


ID Part.No. number of
contacts
70336 2203SDI-006G-935 6
70337 2203SDI-009G-935 9
70338 2203SDI-012G-935 12
70339 2203SDI-015G-935 15
70340 2203SDI-018G-935 18
70341 2203SDI-021G-935 21
70342 2203SDI-024G-935 24
70343 2203SDI-027G-935 27
70344 2203SDI-030G-935 30
70345 2203SDI-033G-935 33
70346 2203SDI-036G-935 36
70347 2203SDI-039G-935 39
70348 2203SDI-042G-935 42
70349 2203SDI-045G-935 45
70350 2203SDI-048G-935 48
70351 2203SDI-051G-935 51
70352 2203SDI-054G-935 54
70353 2203SDI-057G-935 57
70354 2203SDI-060G-935 60
70355 2203SDI-063G-935 63

ID Part.No. number of
contacts
70356 2203SDI-066G-935 66
70357 2203SDI-069G-935 69
70358 2203SDI-072G-935 72
70359 2203SDI-075G-935 75
70360 2203SDI-078G-935 78
70361 2203SDI-081G-935 81
70362 2203SDI-084G-935 84
70363 2203SDI-087G-935 87
70364 2203SDI-090G-935 90
70365 2203SDI-093G-935 93
70366 2203SDI-096G-935 96
70367 2203SDI-099G-935 99
70368 2203SDI-102G-935 102
70369 2203SDI-105G-935 105
70370 2203SDI-108G-935 108
70371 2203SDI-111G-935 111
70372 2203SDI-114G-935 114
70373 2203SDI-117G-935 117
70374 2203SDI-120G-935 120

2203SDI-XXXG-935 series, straight three-row sockets with increased insulator on the Board for mounting in holes, pitch 2,0x2,0 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,0x2,0 mm

PCB layout
