| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0x2,0 mm |
2207SDI-XXG-935 series |
straight double-row sockets with increased insulator on the Board for mounting in holes, pitch 2,0x2,0 mm
|

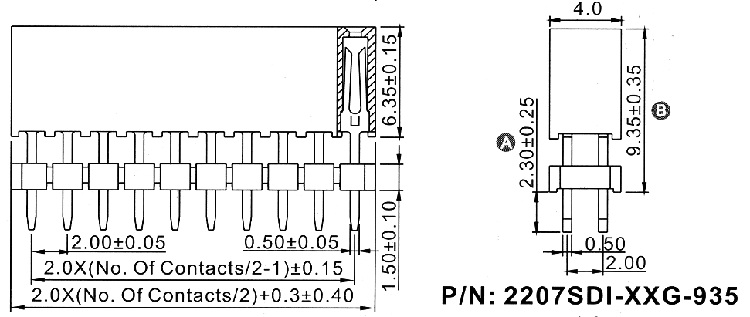

Drawing
|
| 2207 |
SDI |
- |
04 |
G |
- |
935 |
| 1 |
2 |
|
3 |
4 |
|
5 |
|
|
1) Series:
2207
2) Insulator:
SDI: straight with double insulator
3) number of pins (4...60):
04: 4 pin (padded with zeros in front if less than 10 pins, i.e.: 04, ... 08)
06: 6 pins
xx: ...
60: 60 pins
4) Contact coverage:
G: gold plating
5) Insulator height in hundredths of mm = 9,35 mm:
935
|
|
Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts. |
Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 70570 |
2207SDI-04G-935 |
4 |
| 70571 |
2207SDI-06G-935 |
6 |
| 70572 |
2207SDI-08G-935 |
8 |
| 70573 |
2207SDI-10G-935 |
10 |
| 70574 |
2207SDI-12G-935 |
12 |
| 70575 |
2207SDI-14G-935 |
14 |
| 70576 |
2207SDI-16G-935 |
16 |
| 70577 |
2207SDI-18G-935 |
18 |
| 70578 |
2207SDI-20G-935 |
20 |
| 70579 |
2207SDI-22G-935 |
22 |
| 70580 |
2207SDI-24G-935 |
24 |
| 70581 |
2207SDI-26G-935 |
26 |
| 70582 |
2207SDI-28G-935 |
28 |
| 70583 |
2207SDI-30G-935 |
30 |
| 70584 |
2207SDI-32G-935 |
32 |
| 70585 |
2207SDI-34G-935 |
34 |
| 70586 |
2207SDI-36G-935 |
36 |
| 70587 |
2207SDI-38G-935 |
38 |
| 70588 |
2207SDI-40G-935 |
40 |
| 70589 |
2207SDI-42G-935 |
42 |
|
|
| 70590 |
2207SDI-44G-935 |
44 |
| 70591 |
2207SDI-46G-935 |
46 |
| 70592 |
2207SDI-48G-935 |
48 |
| 70593 |
2207SDI-50G-935 |
50 |
| 70594 |
2207SDI-52G-935 |
52 |
| 70595 |
2207SDI-54G-935 |
54 |
| 70596 |
2207SDI-56G-935 |
56 |
| 70597 |
2207SDI-58G-935 |
58 |
| 70598 |
2207SDI-60G-935 |
60 |
| 70599 |
2207SDI-62G-935 |
62 |
| 70600 |
2207SDI-64G-935 |
64 |
| 70601 |
2207SDI-66G-935 |
66 |
| 70602 |
2207SDI-68G-935 |
68 |
| 70603 |
2207SDI-70G-935 |
70 |
| 70604 |
2207SDI-72G-935 |
72 |
| 70605 |
2207SDI-74G-935 |
74 |
| 70606 |
2207SDI-76G-935 |
76 |
| 70607 |
2207SDI-78G-935 |
78 |
| 70608 |
2207SDI-80G-935 |
80 |
|
PCB layout
|
|
|
